- Valve function5/2, bistable
- Actuation typeElectrical
- Width42 mm
- Standard nominal flow rate1200 l/min
- Pneumatic working portSub-base, size 1 according to ISO 5599-1 G1/4
- Operating voltageVia solenoid coil, to be ordered separately
- Operating pressure2 bar … 10 bar
- Structural designPiston gate valve
- Certificationc UL us – Recognized (OL)
- Maritime classificationSee certificate
- Degree of protectionIP65
- Nominal width8 mm
- Width dimension43 mm
- Exhaust air functionWith flow control option
- Sealing principleSoft
- Mounting positionAny
- Conforms to standardISO 5599-1
- Manual overrideDetenting via accessory Non-detenting
- ISO code155
- Type of controlPilot-controlled
- Pilot air supply portInternal
- Flow directionNon-reversible
- Symbol00991005
- LapOverlap
- Changeover time18 ms
- Max. positive test pulse with 0 signal3700 µs
- Max. negative test pulse on 1 signal4600 µs
- Coil characteristicsSee solenoid coil, to be ordered separately
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Vibration resistanceTransport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Temperature of medium-5 °C … 50 °C
- Noise level85 dB(A)
- Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature-5 °C … 50 °C
- Product weight610 g
- Electrical connectionVia N1 coil, to be ordered separately
- Type of mountingOn sub-base With through-hole
- Pilot air port 12Sub-base, size 1 as per ISO 5599-1
- Pilot air port 14Sub-base, size 1 as per ISO 5599-1
- Pneumatic connection 1Sub-base, size 1 as per ISO 5599-1
- Pneumatic connection 2Sub-base, size 1 as per ISO 5599-1
- Pneumatic connection 3Sub-base, size 1 as per ISO 5599-1
- Pneumatic connection 4Sub-base, size 1 as per ISO 5599-1
- Pneumatic connection 5Sub-base, size 1 as per ISO 5599-1
| Manufacturer | FESTO |
|---|---|

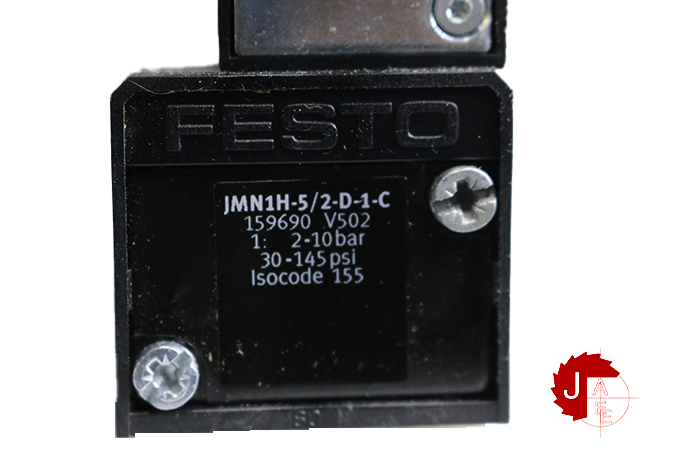

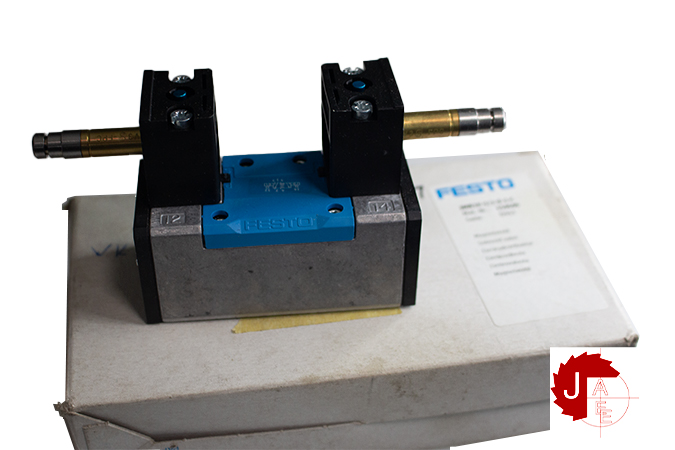

| Model | JMN1H-5/2-D-1-C 159690 Air solenoid valve |
