- SizeMidi
- SeriesD
- Mounting positionVertical +/- 5°
- Structural designProportional standard oil mist lubricator
- Max. oil capacity110 cm³
- Bowl guardMetal bowl guard
- Symbol00991532
- Operating pressure0 bar … 16 bar
- Minimum flow rate for lubricator function8 l/min
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot mediaOperation with oil lubrication not possible
- Corrosion resistance class (CRC)2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Storage temperature-10 °C … 60 °C
- Air quality class at the outputCompressed air as per ISO 8573-1:2010 [7:4:-] Inert gas
- Temperature of medium-10 °C … 60 °C
- Ambient temperature-10 °C … 60 °C
- Product weight630 g
- Type of mountingWith accessories
- Note on materialsRoHS-compliant
- Material of bowlPC
| Manufacturer | FESTO |
|---|---|

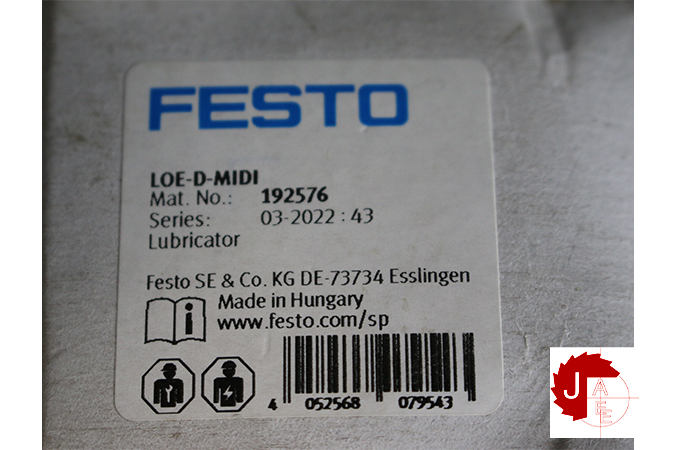

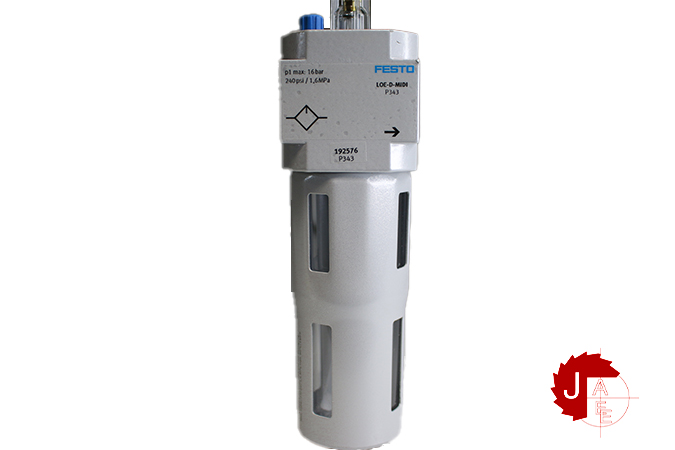

| Model | LOE-D-MIDI 192576 Air line lubricator |
| Condition | New |
