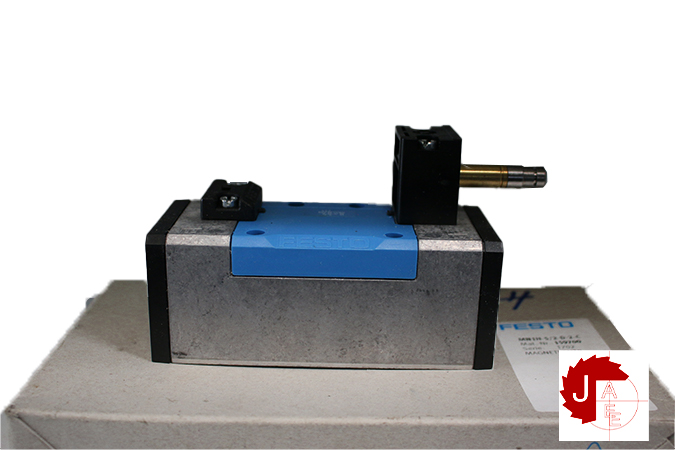

- Valve function5/2, monostable
- Actuation typeElectrical
- Width54 mm
- Standard nominal flow rate2300 l/min
- Pneumatic working portSub-base, size 2 according to ISO 5599-1 G3/8
- Operating voltageVia solenoid coil, to be ordered separately
- Operating pressure0.2 MPa … 1 MPa
- Operating pressure2 bar … 10 bar
- Structural designPiston gate valve
- Reset methodPneumatic spring
- Certificationc UL us – Recognized (OL)
- Maritime classificationSee certificate
- Degree of protectionIP65
- Nominal width11.5 mm
- Width dimension56 mm
- Exhaust air functionWith flow control option
- Sealing principleSoft
- Mounting positionAny
- Conforms to standardISO 5599-1
- Manual overrideDetenting via accessory Non-detenting
- ISO code251
- Type of controlPilot-controlled
- Pilot air supply portInternal
- Flow directionNon-reversible
- Symbol00991049
- LapOverlap
- Switching time off69 ms
- On switching time46 ms
- Max. positive test pulse with 0 signal3700 µs
- Max. negative test pulse on 1 signal4600 µs
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Vibration resistanceTransport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Temperature of medium-5 °C … 50 °C
- Noise level85 dB(A)
- Ambient temperature-5 °C … 50 °C
- Product weight710 g
- Electrical connectionVia N1 coil, to be ordered separately
- Type of mountingOn sub-base With through-hole and screw
- Pilot exhaust air port 84M5
- Pneumatic connection 1Sub-base, size 2 as per ISO 5599-1
- Pneumatic connection 2Sub-base, size 2 as per ISO 5599-1
- Pneumatic connection 3Sub-base, size 2 as per ISO 5599-1
- Pneumatic connection 4Sub-base, size 2 as per ISO 5599-1
- Pneumatic connection 5Sub-base, size 2 as per ISO 5599-1
- Note on materialsRoHS-compliant
- Seals materialHNBR NBR
- Housing materialDie-cast aluminum
