- CertificationRCM compliance mark c UL us – Listed (OL)
- CE marking (see declaration of conformity)As per EU EMC directive As per EU RoHS directive
- UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- KC charactersKC EMC
- Note on materialsRoHS-compliant
- Measured variableRelative pressure
- Method of measurementPiezoresistive pressure sensor
- Pressure measuring range initial value0 bar
- Pressure measuring range end value10 bar
- Max. overload pressure15 bar
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot mediaOperation with oil lubrication possible
- Temperature of medium0 °C … 50 °C
- Ambient temperature0 °C … 50 °C
- ADC resolution12 bit
- Accuracy in ± % FS1.5 %FS
- Repetition accuracy in ± %FS0.3 %FS
- Temperature co-efficient in ± %FS/K0.05 %FS/K
- Switching output2 x PNP or 2 x NPN switchable
- Switching functionFreely programmable
- Switching element functionN/C contact/N/O contact switchable
- Max. output current100 mA
- Analog output0 – 10 V 4 – 20 mA 1 – 5 V
- Rise time3 ms
- Max. load resistance of current output500 Ohm
- Min. load resistance of voltage output10 kOhm
- Short-circuit protectionyes
- ProtocolIO-Link®
- IO-Link®, protocol versionDevice V 1.1
- IO-Link®, profileSmart sensor profile
- IO-Link®, function classesBinary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
- IO-Link®, communication modeCOM2 (38,4 kBd)
- IO-Link®, SIO mode supportYes
- IO-Link®, port classA
- IO-Link®, process data width OUT0 Byte
- IO-Link®, process data width IN2 Byte
- IO-Link®, process data content IN14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)
- IO-Link®, minimum cycle time3 ms
- IO-Link®, data memory required500 byte
- DC operating voltage range20 V … 30 V
- Reverse polarity protectionfor all electrical connections
- Electrical connection 1, connection typePlug
- Electrical connection 1, connection technologyM8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires4
- Electrical connection for input 1, connection pattern00991171
- Type of mountingWith thread
- Mounting positionAny
- Pneumatic connectionR1/4
- Product weight80 g
- Display typeIlluminated LCD
- Displayable unit(s)MPa bar inH2O inHg kPa kgf/cm² mmHg psi
- Setting optionsIO-Link® Teach-in Via display and pushbuttons
- Protection against tamperingIO-Link® PIN code
- Setting range threshold value0 % … 100 %
- Setting range hysteresis0 % … 90 %
- Degree of protectionIP65 IP67
- Corrosion resistance class (CRC)2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
| Manufacturer | FESTO |
|---|---|

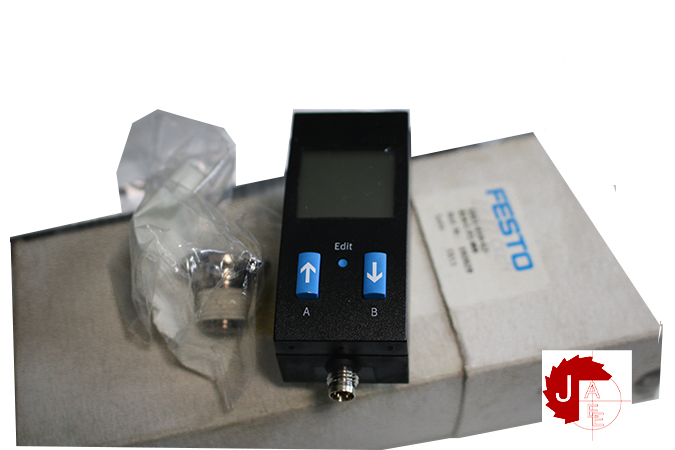

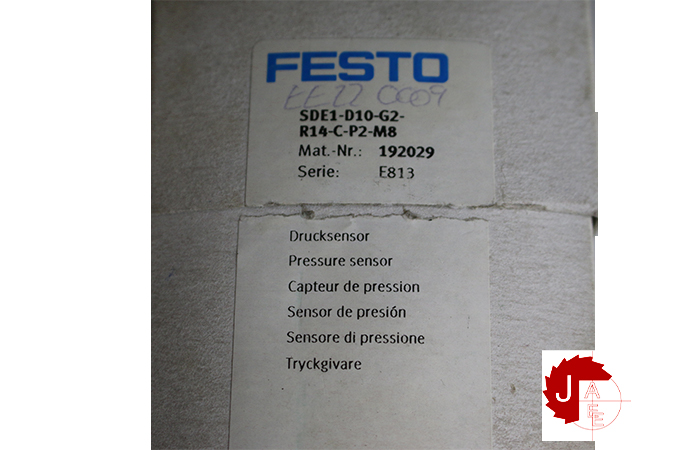

| Model | SDE1-D10-G2-R14-C-P2-M8 192029 Pressure sensor |
| Condition | New |
