- Valve function5/2, bistable
- Actuation typeElectrical
- Valve size10 mm
- Standard nominal flow rate360 l/min
- Operating voltage24V DC
- Operating pressure-0.09 MPa … 1 MPa
- Operating pressure-0.9 bar … 10 bar
- Structural designPiston gate valve
- Certificationc UL us – Recognized (OL)
- Degree of protectionIP65 as per IEC 60529
- Sealing principleSoft
- Mounting positionAny
- Manual overrideDetenting Non-detenting
- Type of controlPilot-controlled
- Flow directionReversible
- Symbol00991067
- LapOverlap
- Signal status displayyes
- Pilot pressure MPa0.3 MPa … 0.8 MPa
- Pilot pressure3 bar … 8 bar
- Suitability for vacuumyes
- Standard nominal flow rate with QS-6360 l/min
- On switching time10 ms
- Changeover time15 ms
- Max. positive test pulse with 0 signal400 µs
- Max. negative test pulse on 1 signal200 µs
- Permissible voltage fluctuations+/- 25 %
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Vibration resistanceTransport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)1 – Low corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Storage temperature-20 °C … 40 °C
- Temperature of medium-5 °C … 50 °C
- Relative air humidityMax. 90 % at 40 °C
- Ambient temperature-5 °C … 50 °C
- Max. tightening torque for valve mounting0.25 Nm
- Product weight56 g
- Type of mountingWith through-hole
- Note on materialsRoHS-compliant
- Seals materialNBR
- Housing materialDie-cast aluminum
| Manufacturer | FESTO |
|---|---|

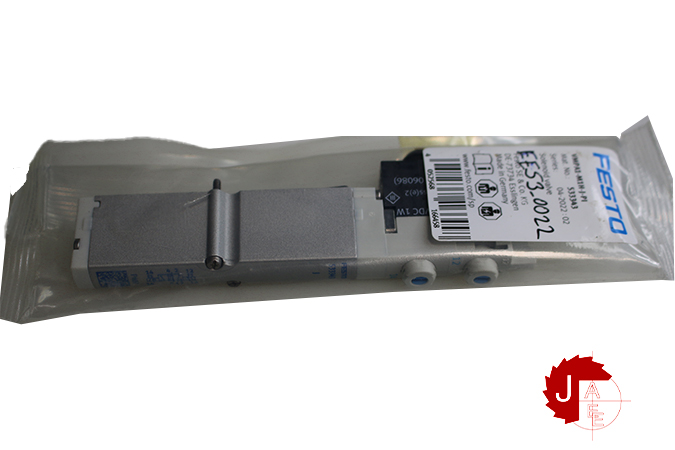

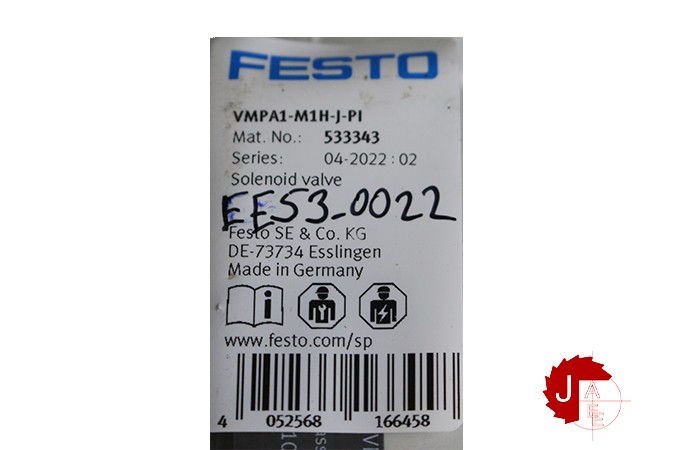

| Model | VMPA1-M1H-J-PI 533343 Air solenoid valve |
