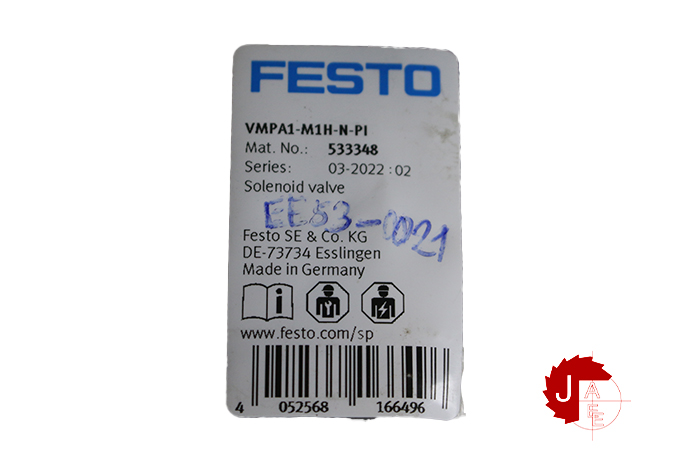

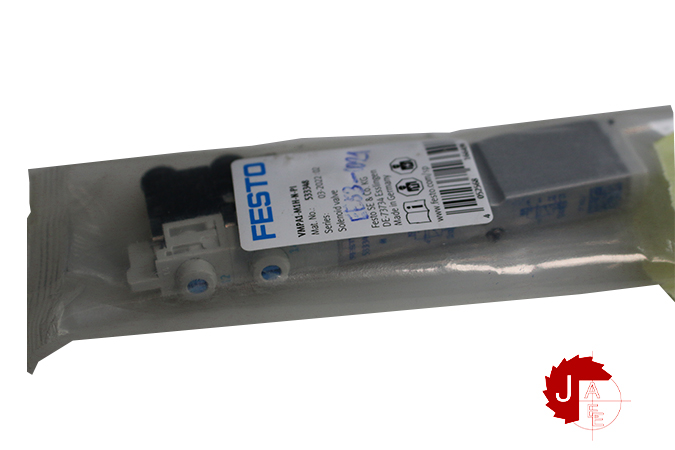

FESTO VMPA1-M1H-N-PI 533348 Air solenoid valve

SKU: 0995642 Category:

Only 1 item left.

  • Valve function2×3/2, open, monostable
  • Actuation typeElectrical
  • Valve size10 mm
  • Standard nominal flow rate300 l/min
  • Operating voltage24V DC
  • Operating pressure0.3 MPa … 1 MPa
  • Operating pressure3 bar … 10 bar
  • Structural designPiston gate valve
  • Reset methodPneumatic spring
  • Certificationc UL us – Recognized (OL)
  • Degree of protectionIP65 as per IEC 60529
  • Sealing principleSoft
  • Mounting positionAny
  • Manual overrideDetenting Non-detenting
  • Type of controlPilot-controlled
  • Flow directionNon-reversible
  • Symbol00991812
  • LapOverlap
  • Signal status displayyes
  • Pilot pressure MPa0.3 MPa … 0.8 MPa
  • Pilot pressure3 bar … 8 bar
  • Suitability for vacuumno
  • Standard nominal flow rate with QS-6300 l/min
  • Switching time off20 ms
  • On switching time10 ms
  • Max. positive test pulse with 0 signal400 µs
  • Max. negative test pulse on 1 signal200 µs
  • Permissible voltage fluctuations+/- 25 %
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • Vibration resistanceTransport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class (CRC)1 – Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-20 °C … 40 °C
  • Temperature of medium-5 °C … 50 °C
  • Relative air humidityMax. 90 % at 40 °C
  • Ambient temperature-5 °C … 50 °C
  • Max. tightening torque for valve mounting0.25 Nm
  • Product weight56 g
  • Type of mountingWith through-hole
  • Note on materialsRoHS-compliant
  • Seals materialNBR
  • Housing materialDie-cast aluminum
Manufacturer FESTO
Model VMPA1-M1H-N-PI 533348 Air solenoid valve
Condition New
