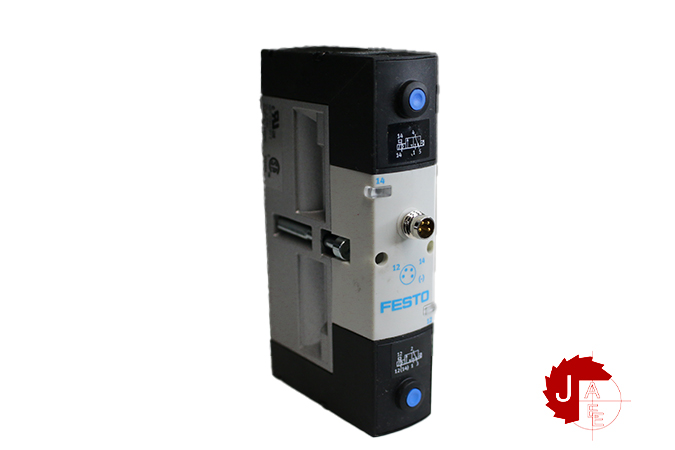

FESTO VSVA-B-T32C-AZH-A1-1R2L 534522 Air solenoid valve

SKU: 0995641 Category:

Only 2 items left.

  • Valve function2×3/2, closed, monostable
  • Actuation typeElectrical
  • Width26 mm
  • Standard nominal flow rate900 l/min
  • Pneumatic working portSub-base, size 26 mm according to ISO 15407-1
  • Operating voltage24V DC
  • Operating pressure0.3 MPa … 1 MPa
  • Operating pressure3 bar … 10 bar
  • Structural designPiston gate valve
  • Reset methodPneumatic spring
  • CertificationRCM compliance mark c UL us – Recognized (OL)
  • CE marking (see declaration of conformity)As per EU EMC directive
  • UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
  • Degree of protectionIP65 NEMA 4
  • Nominal width9 mm
  • Width dimension27 mm
  • Exhaust air functionWith flow control option Via throttle plate Via individual sub-base
  • Sealing principleSoft
  • Mounting positionAny
  • Conforms to standardISO 15407-1
  • Manual overrideNon-detenting
  • Type of controlPilot-controlled
  • Pilot air supply portExternal
  • Flow directionNon-reversible
  • Symbol00991817
  • LapOverlap
  • Reverse polarity protectionfor all electrical connections
  • Additional functionsHolding current reduction Safety shut-down
  • Signal status displayLED
  • Pilot pressure MPa0.3 MPa … 0.8 MPa
  • Pilot pressure3 bar … 8 bar
  • b-value0.25
  • C value4 l/sbar
  • Flow rate of pneumatic valve1250 l/min
  • Flow rate of pneumatic valve on individual sub-base1000 l/min
  • Optimized flow rate of pneumatic valve pneumatically concatenated flow900 l/min
  • Switching time off33 ms
  • On switching time20 ms
  • Duty cycle100%
  • Max. positive test pulse with 0 signal500 µs
  • Max. negative test pulse on 1 signal500 µs
  • Nominal pick-up current per solenoid coil110 mA to 20 ms
  • Nominal current with current reduction30 mA after 20 ms
  • Coil characteristics24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
  • Permissible voltage fluctuations+/- 10 %
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • Vibration resistanceTransport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class (CRC)2 – Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Temperature of medium-5 °C … 50 °C
  • Relative air humidity0 – 90 %
  • Protection against direct and indirect contactPELV
  • Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature-5 °C … 50 °C
  • Max. tightening torque for valve mounting1.8 Nm … 2.2 Nm
  • Product weight270 g
  • Electrical connection4-pin M8x1 Central plug Round design
  • Type of mountingOn sub-base With through-hole and screw
  • Pilot air port 12/14Sub-base, size 26 mm as per ISO 15407-1
  • Pilot exhaust air port 82/84Ducted Not ducted as per standard Optionally:
  • Note on materialsRoHS-compliant
  • Seals materialFPM HNBR NBR
  • Housing materialDie-cast aluminum

Manufacturer FESTO
Model VSVA-B-T32C-AZH-A1-1R2L 534522 Air solenoid valve
Condition New
