Manufacturer: GEMU
Type: Angle seat globe valve, Pneumatically operated

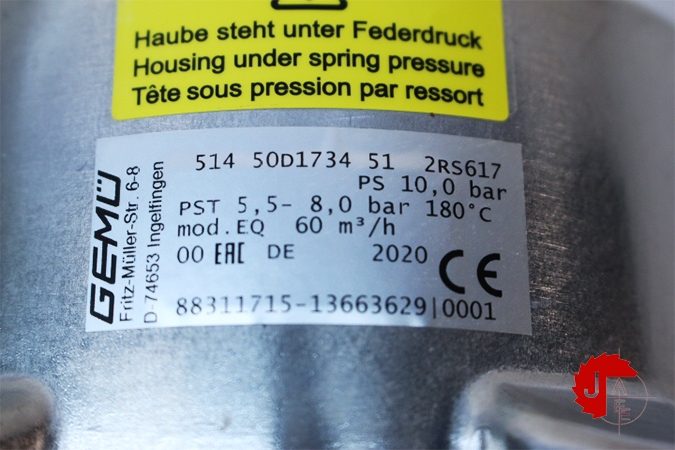

Model: 514 50D1734 51 2RS617
Part No: 2″ DN25

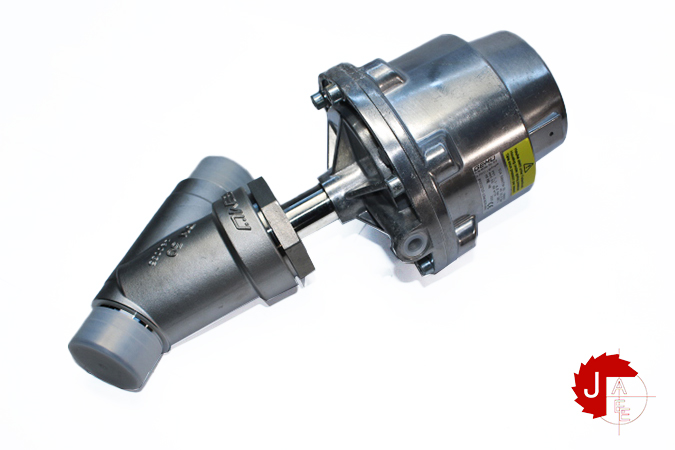

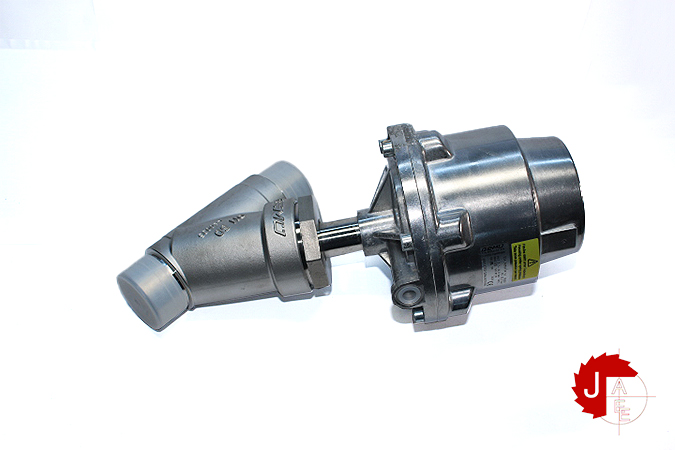

The GEMÜ 514 2/2-way angle seat globe valve has a low-maintenance aluminium piston actuator and is pneumatically operated. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage.
Type: 514: Angle seat globe valve, pneumatically operated, aluminium piston actuator
Body configuration: D: 2/2-way body
Connection type: 17: Spigot EN 10357 series A (formerly DIN 11850 series 2) / DIN 11866 series A

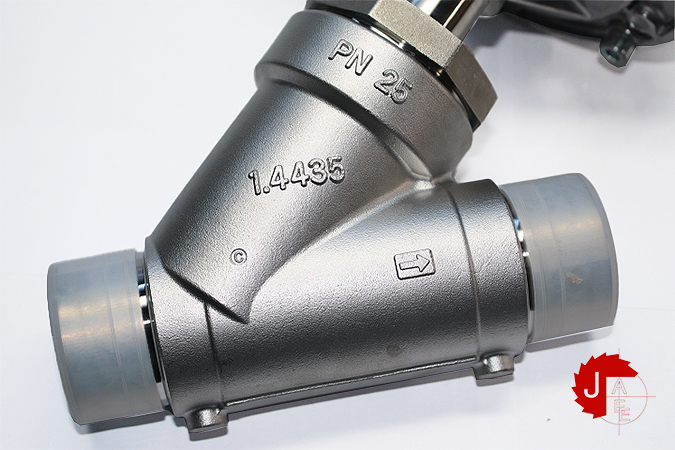

Valve body material: 34: 1.4435, investment casting
Control function: 1: Normally closed (NC)
Actuator version: 1: Actuator size 1
