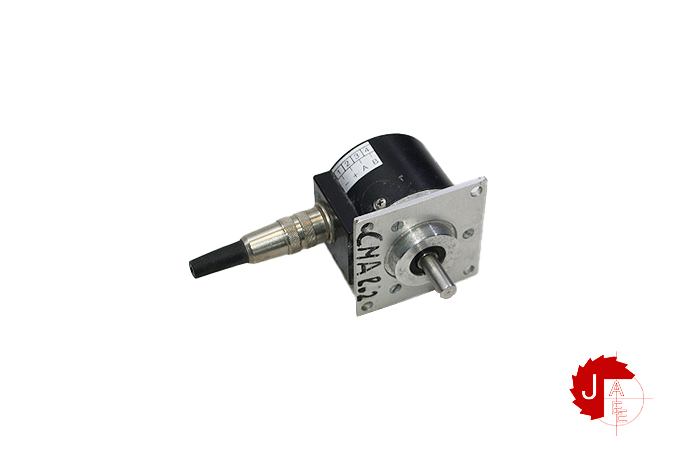

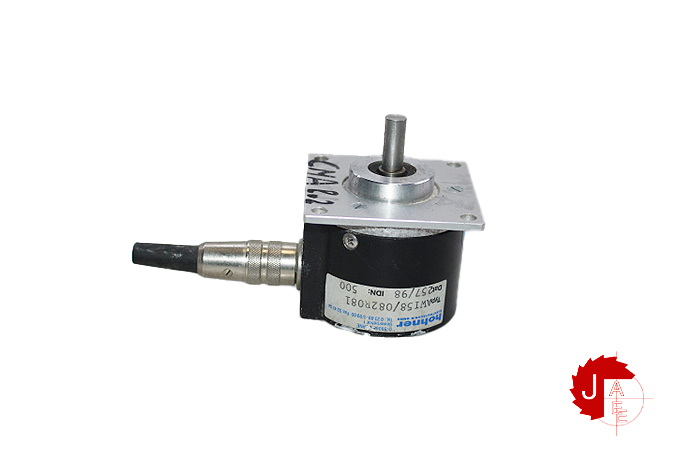

HOHNER AWI58-082R081-500 ENCODER

HOHNER AWI58S

Manufacturer: HOHNER

Type:  ENCODER

Model: AWI58S-062R528-500

Shaft Diameter:8 mm

Electrical specifications

max. pulse frequency: 100 kHz
Perm. temperature range: -30°. . . +70° C
Power supply: 10 V. . . 30 V DC
Max. current consumption: 80 mA (without load)
Max. output load: 30 mA (per channel)
Residual ripple: max. ± 5% UB
Power supply: 5 V DC ± 5%
Max. current consumption: 80 mA
Max. output load: 30 mA (per channel)
