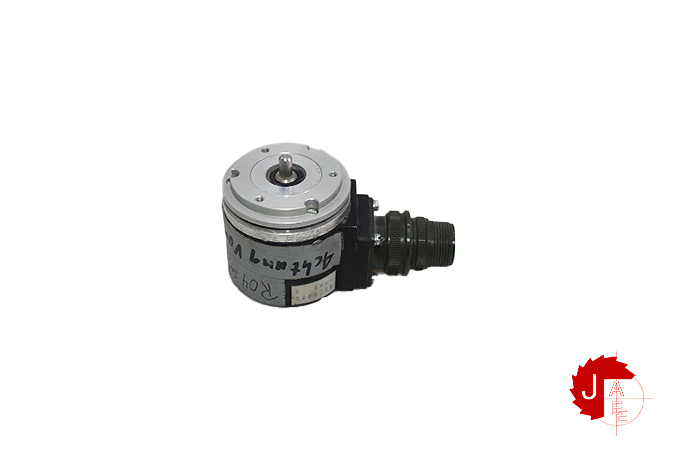

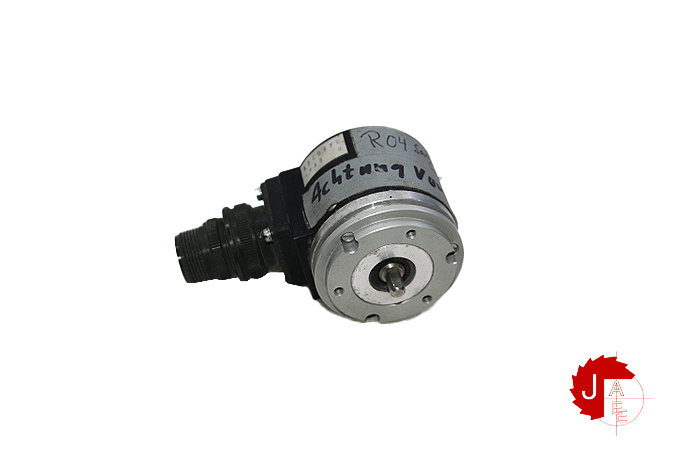

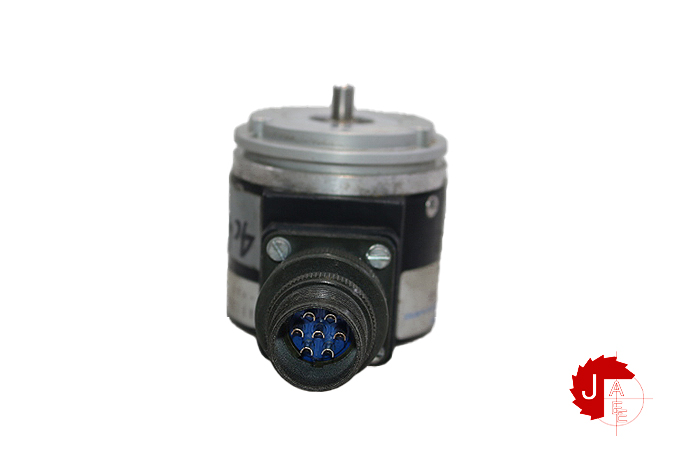

Manufacturer: HOHNER
Type: ENCODER

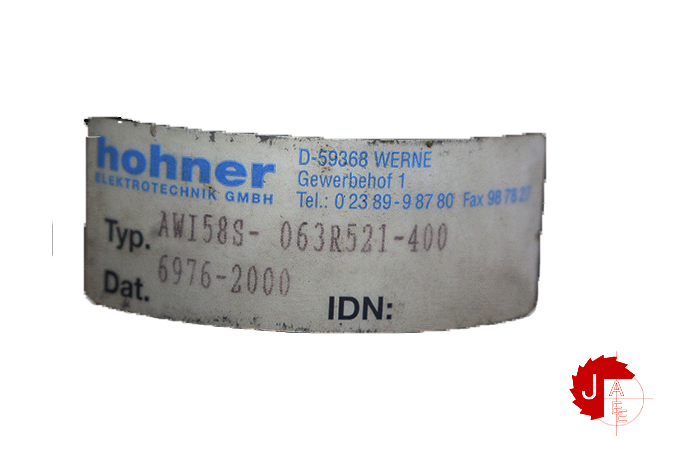

Model: AWI58S-063R521-400
Shaft Diameter: 6 mm
Electrical specifications
max. pulse frequency: 100 kHz
Perm. temperature range: -30°. . . +70° C
Power supply: 10 V. . . 30 V DC
Max. current consumption: 80 mA (without load)
Max. output load: 30 mA (per channel)
Residual ripple: max. ± 5% UB
Power supply: 5 V DC ± 5%
Max. current consumption: 80 mA
Max. output load: 30 mA (per channel)
| Manufacturer | HOHNER |
|---|---|
| Model | AWI58S-063R521-400 ENCODER |
| Condition | Used |
