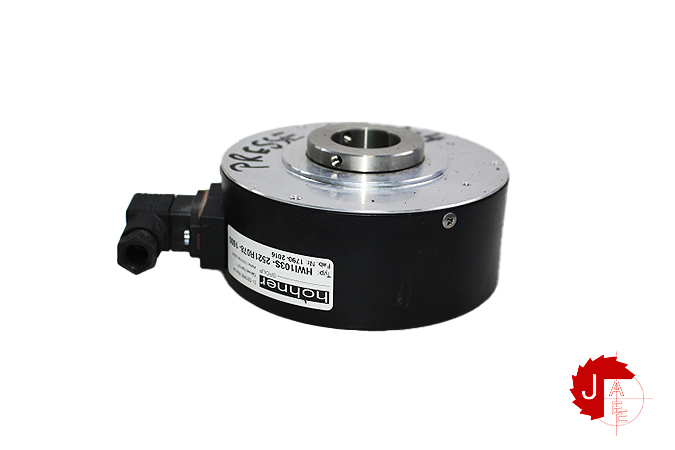

HOHNER HWI103S-2521R078-1660 ENCODER

HOHNER

Manufacturer: HOHNER
Type:  ENCODER

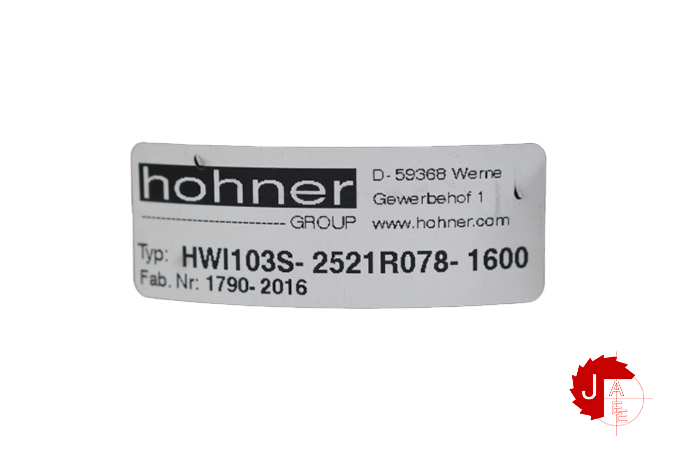

Model: HWI103S-2521R078-1660Electrical specifications

Electrical specifications

max. pulse frequency: 100 kHz
Perm. temperature range: -30°. . . +70° C

Shaft Diameter:25 mm

Power supply: 10 V . . . 30 V DC
Max. current consumption: 80 mA (without load)
Max. output load: 30 mA (per channel)
Residual ripple: max. ± 5% UB
Power supply: 5 V DC ± 5%
Max. current consumption: 80 mA
