HUMIDITY TRANSMITTER FF-IND-10V-TED  temperature sensor

Manufacturer:HUMIDITY TRANSMITTER

Type:  temperature sensor

Model: FF-IND-10V-TED

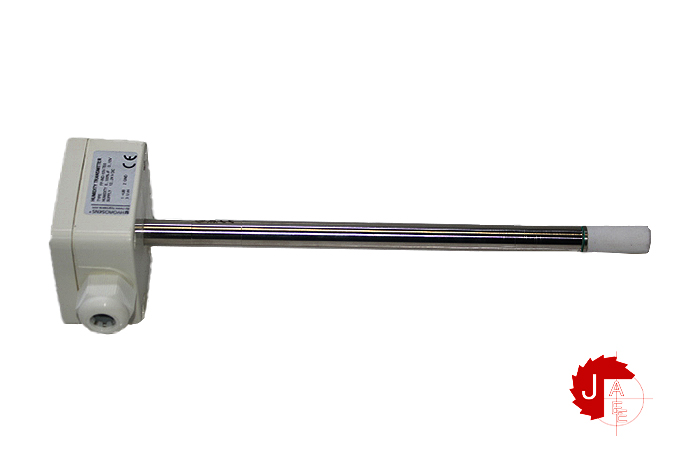

Article name Duct humidity/temperature probeHumidity measuring range 0…100% RH
Sensor type humidity Capacitive humidity sensor
Humidity accuracy±2%RH
Output scaling humidity0…100% RH on 0…10 V
Temperature measuring range-30…+70 °C
SensorPt1000, 2-wire
AccuracyF 0,3 (Class B) DIN EN 60751 conform
Output scaling temperature-30…+70 °C on 0…10V
Response time temperatureT90: 25 s with protection filter
Tube length180 mm
Tube diameter12 mm
Tube materialStainless steel AISI 316Ti
Protective filterPE-sintered filter 25 µm, Ø 12 x 30MM
ConnectionScrew terminal 0.75 mm²
Operating voltage15…24 V AC/DC
Overvoltage protectionVaristor and RC-filter
Output signal2x 0…10 VC
orresponds to standard articleFF-GLT-10V-INT-TE1
