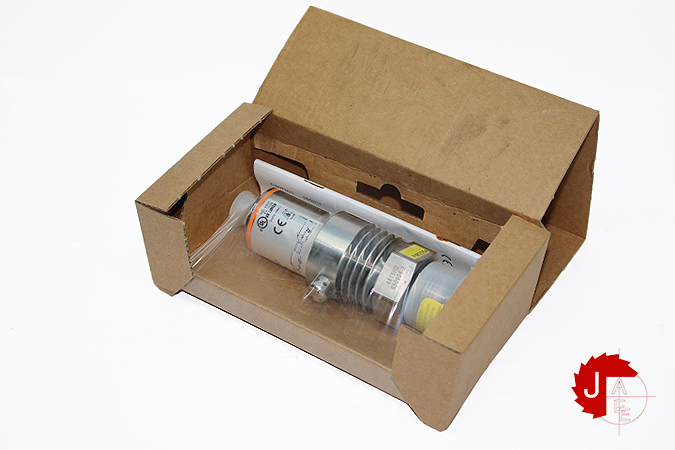

IFM electronic PM-010-RES30-E-ZVG/US/ /P Flush pressure transmitter PM2054

SKU: 0999223 Category: There are no items available at this time.

Manufacturer: IFM electronic
Type: Flush pressure transmitter
Model: PM-010-RES30-E-ZVG/US/ /P
Part No: PM2054

Number of inputs and outputs
Number of analogue outputs: 1
Measuring range -0.5…10 bar
Process connection threaded connection Aseptoflex external thread Aseptoflex

Special feature Gold-plated contacts
Application
flush mountable for the food and beverage industry
Media
viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C] -25…125; (145 max. 1h)
Min. bursting pressure 150 bar

Operating voltage [V] 14…30 DC
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
