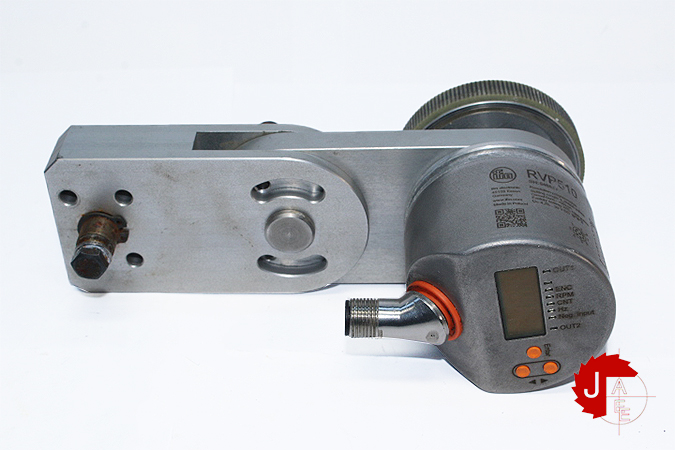

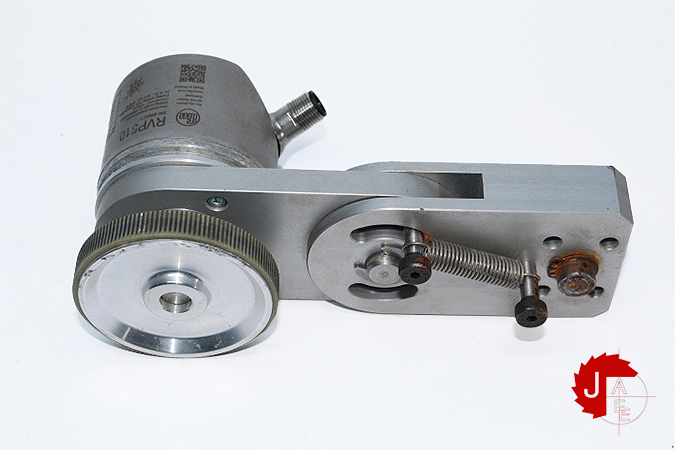

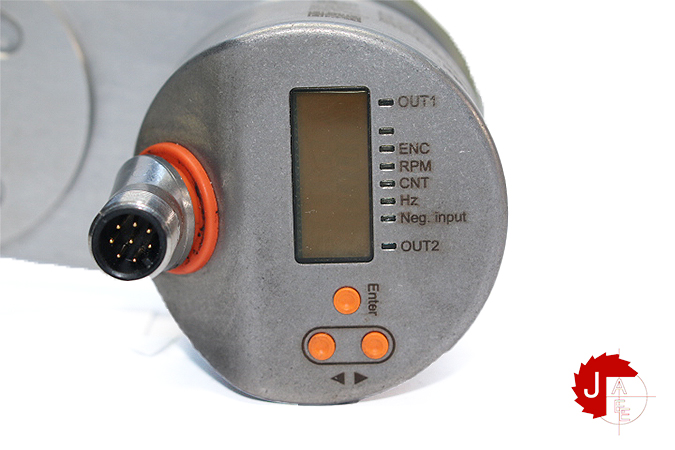

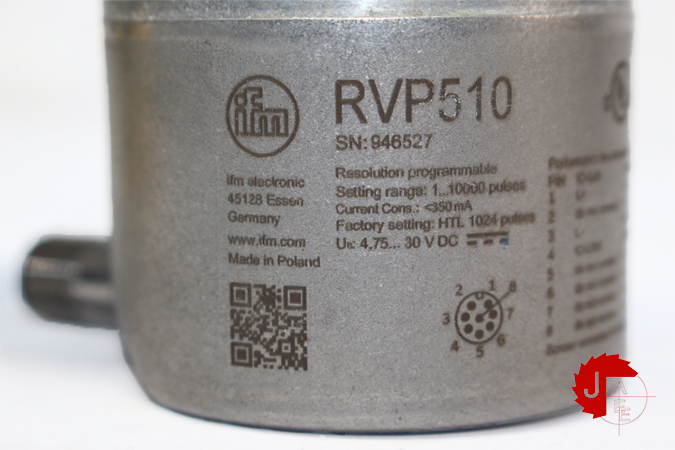

IFM RVP510 Ncremental encoder with solid shaft and display

IFM RVP510 Ncremental encoder with solid shaft and display

Manufacturer: IFM
Type: Ncremental encoder with solid shaft and display
Model: RVP510

Product characteristics
Resolution 1…10000; (parameterisable; Factory setting: 1024) resolution
Communication interface IO-Link
Shaft design solid shaft
Shaft diameter [mm] 10
Application Function principle / incremental
Detection system magnetic
Application encoder; Speed monitor; counter
Electrical data
Operating voltage [V] 4.75…30 DC
Current consumption [mA] < 350
Outputs
Electrical design HTL/TTL
Switching frequency [kHz] 1000
Factory setting Output function: HTL (50 mA)
