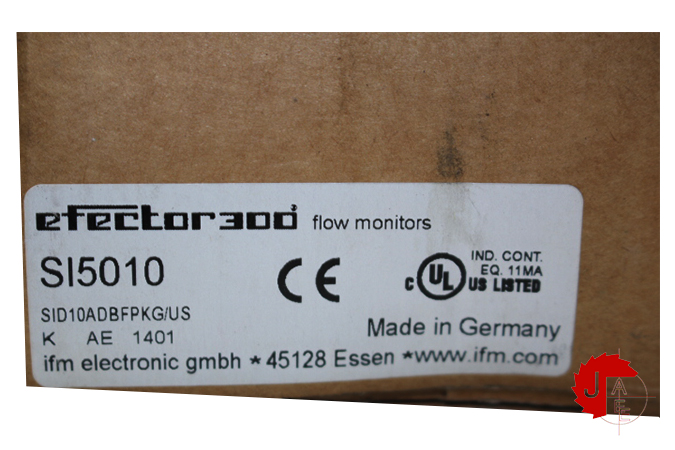

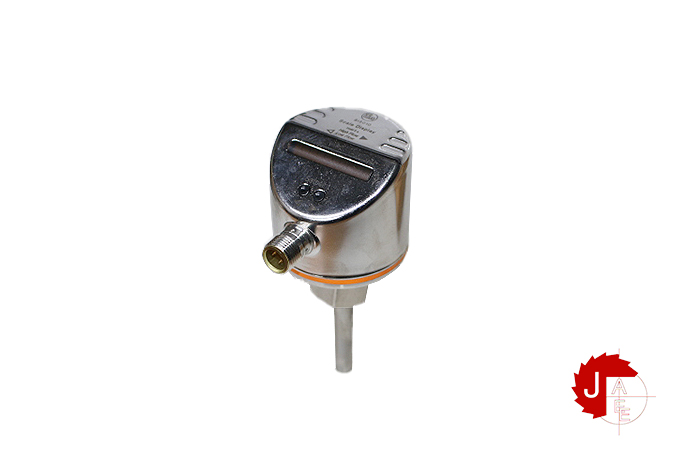

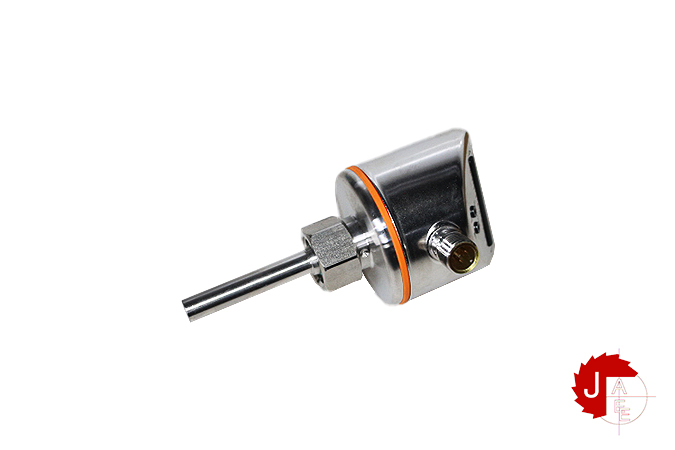

IFM SI5010 Flow monitor

Manufacturer: IFM
Type: Flow monitor
Model: SI5010

Reliable monitoring of liquids and gases in pipes
Variable process connection using adapters
Easy setting of the switch points for quick set-up
Robust stainless steel housing for use in harsh industrial environments

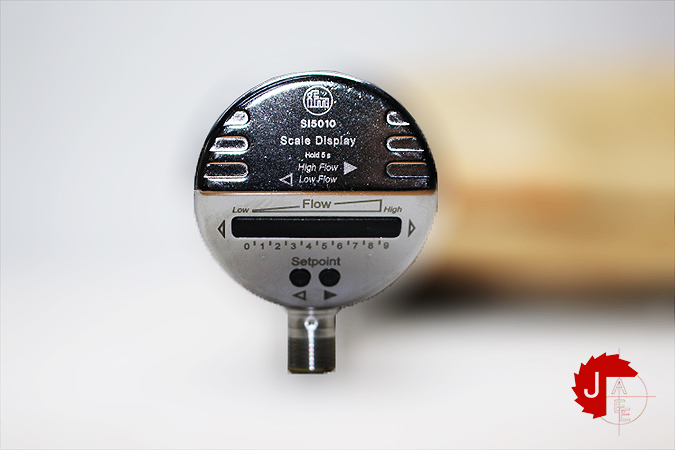

LED bar graph for indication of switch point and flow

Number of inputs and outputs
Number of digital outputs: 1
Process connection M18 x 1,5 internal thread
Application
Media Liquids; Gases
Medium temperature [°C] -25…80
Pressure rating [bar] 300
MAWP (for applications according to CRN) [bar] 208
Liquids
Medium temperature [°C] -25…80
Gases
Medium temperature [°C] -25…80
Electrical data
Operating voltage [V] 18…36 DC
Current consumption [mA] < 60
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 10

Electrical design PNP
Number of digital outputs 1
Probe length L [mm] 45
