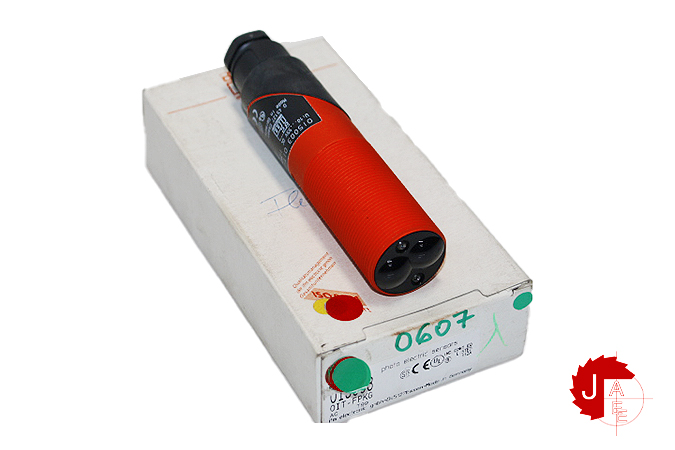

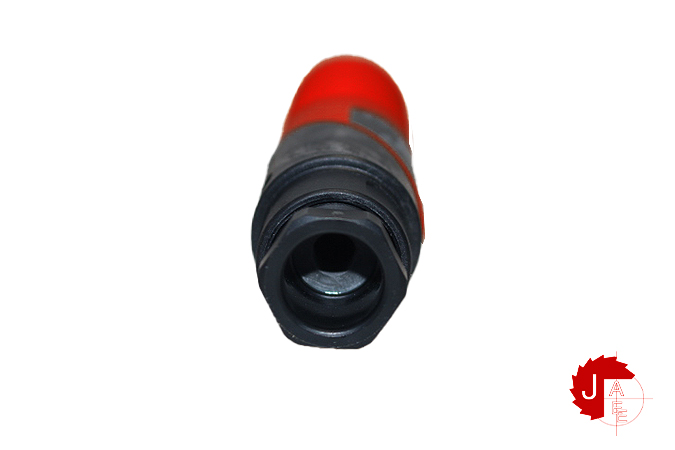

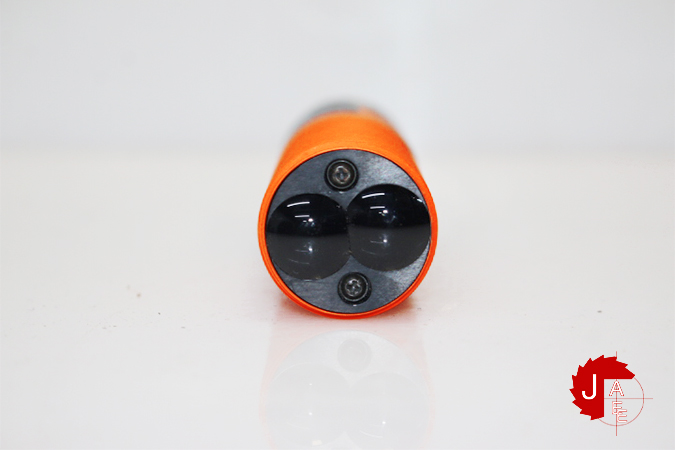

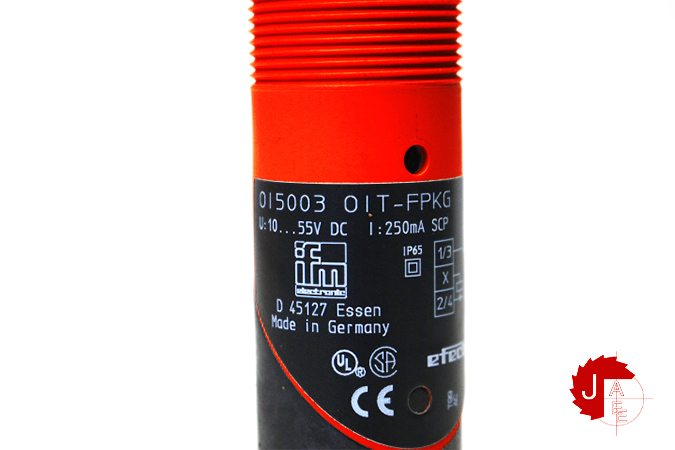

IFM OI5003 OIT-FPKG Diffuse reflection sensor

85.00 $

Availability: 5 in stock

SKU: 0996153 Category: Tag:

Only 5 items left.

IFM OI5003 OIT-FPKG

Manufacturer: IFM
Type: Diffuse reflection sensor
Model: OI5003 OIT-FPKG

Product characteristics
Type of light infrared light
Housing threaded type
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10…55 DC
Current consumption [mA] 30; ((24 V))
Protection class II
Reverse polarity protection yes
Type of light infrared light
Wave length [nm] 880
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 100
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] 3…700; (white paper 200 x 200 mm)
Range adjustable yes
Max. light spot diameter [mm] 122
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25…80
Protection IP 65
Manufacturer IFM
Model OI5003 OIT-FPKG
Condition New
