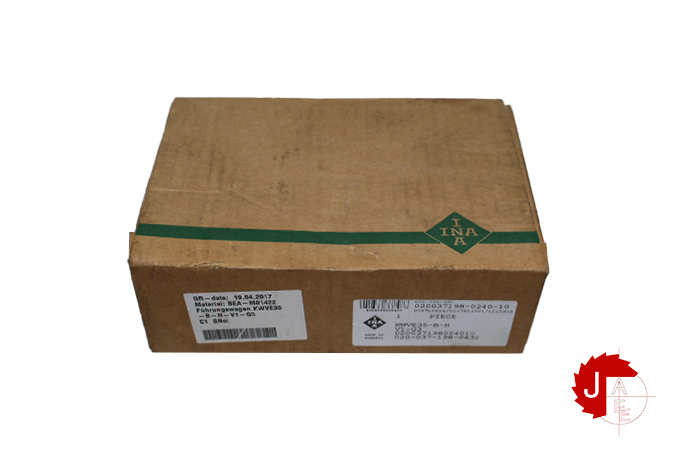

INA KWVE35-B-H-V1-G3 linear bearing

Manufacturer: INA
Type: linear bearing

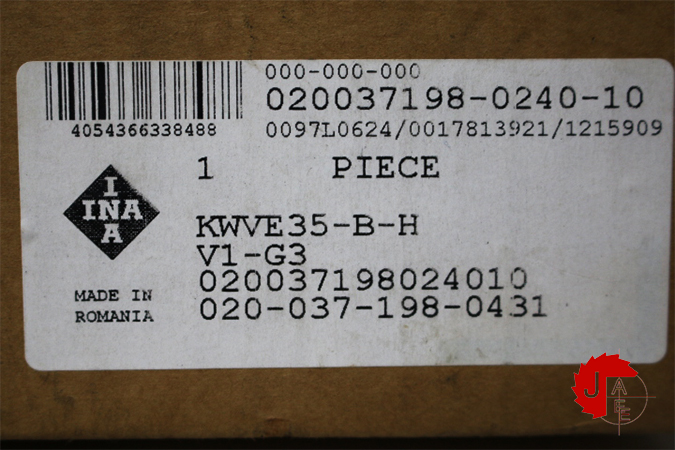

Model: KWVE35-B-H-V1-G3

Main Dimensions & Performance Data
static moment rating about X axis M0x 1,465
dynamic load rating C 38,000
width carriage B 70 mm
static moment rating about Z axis M0Z 1,020

static load rating C0 72,000
overall length carriage L 112 mm
height system H 55 mm
static moment rating about Y axis M0y 1,020

Mounting dimensions
position lubrication connector A3 22 mm
lubrication connector N3 M6
fixing screws below (DIN ISO 4762-12.9) K3 M8
width rail b 34 mm

maximum permissible screw depth for lubrication connectors t N3 7 mm
maximum tightening torque G2 MA 41 Nm
L2 13.50 mm
Material name VMKB_065 KWVE
