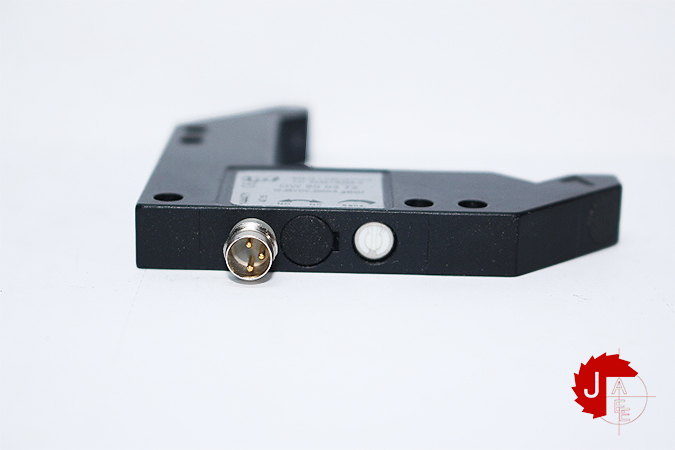

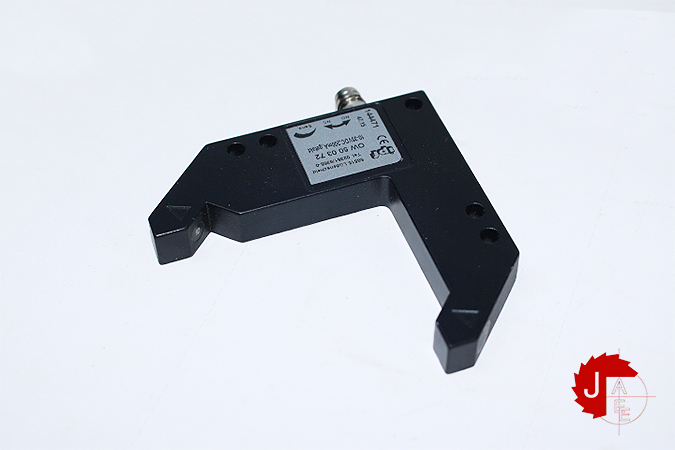

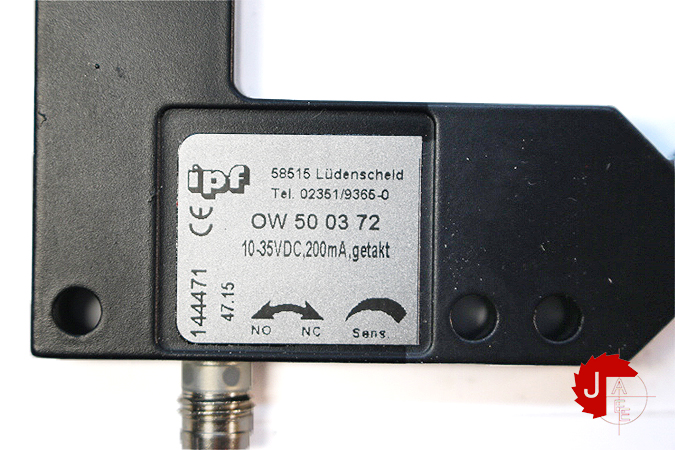

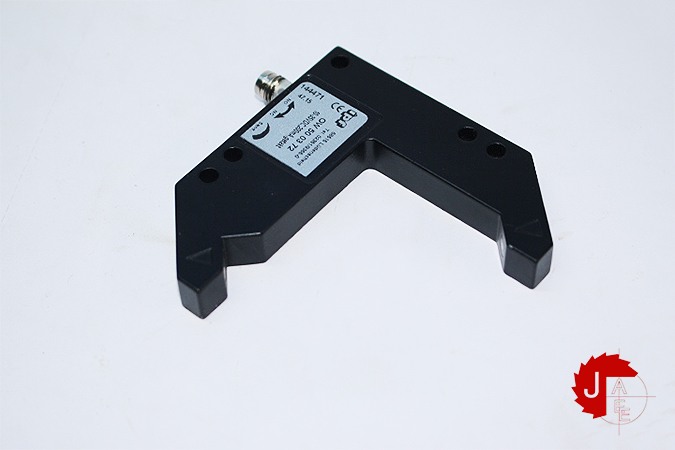

ipf electrical OW500372 Optical sensors – Angular light barriers

ipf electrical OW500372 Optical sensors – Angular light barriers

Manufacturer: ipf electrical
Type: Optical sensors – Angular light barriers
Model: OW500372

Sensor optical, angle, 75x10x75mm, fork width 60mm, 10-35V DC, 1x PNP NC/NO, Connector M8 3pin, IP67, Zinc die-cast+Plastic, Red light, 4kHz pulsed, Manual adjustment

Electrical properties
Response/decay time 0.12ms
Number of switching outputs 1
Resolution 0.5mm
Type of the forked light barrier Standard
Type of switching function Normally closed contact/normally open contact
Type of electrical connection Connector M8
Type of switching output PNP
Rated switching current 200mA
Setting procedure Manual adjustment
Absolute hysteresis 0.25mm
Short-circuit protection Yes
No-load current 30mA
Number of pins 3
Repeatability +/- 60µm
Switching frequency 4,000Hz
Protection class III
Voltage drop 2.8V
Scanning function Light-/dark-on mode
Reverse polarity protection Yes
Decay time 0.12ms
Absolute repeat accuracy 0.06mm
Operating voltage (DC) 10 – 35V
