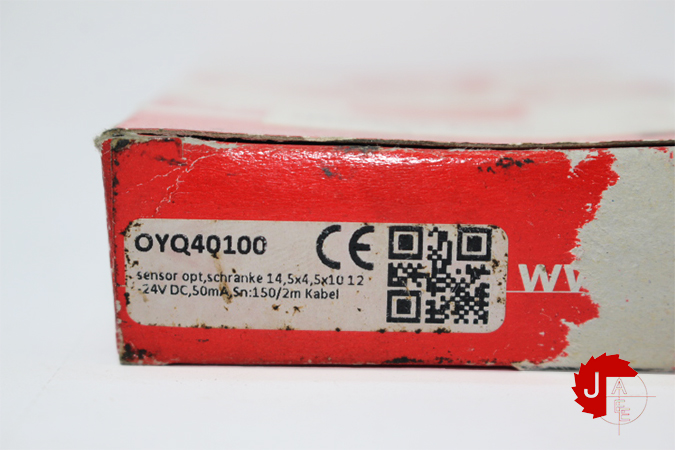

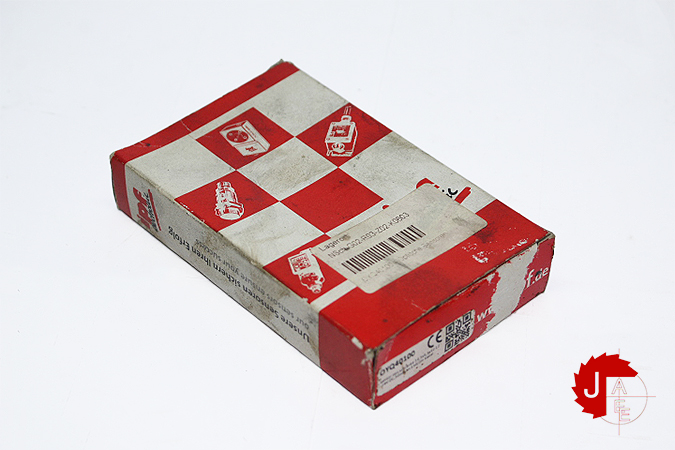

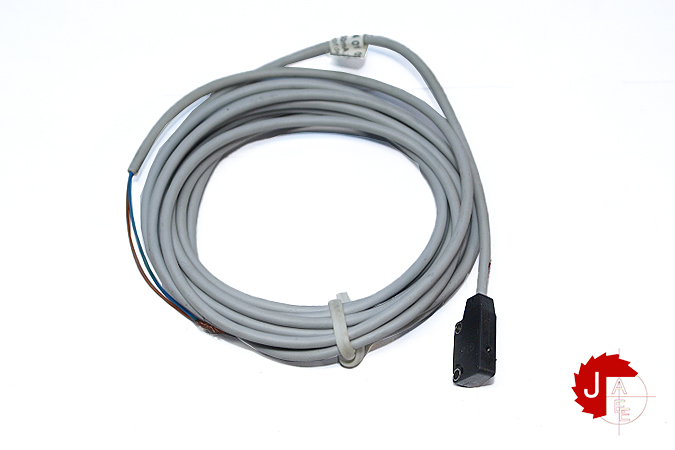

ipf electrical OYQ40100 THROUGH-BEAM SENSORS

Manufacturer: ipf electrical
Type: THROUGH-BEAM SENSORS
Model: OYQ40100

OTHER PROPERTIES
Scope of delivery Transmitter and receiver
Ambient temperature -25 – 55°C
ELECTRICAL PROPERTIES
Response/decay time 0.5ms
Type of switching function Normally open contact (NO)
Type of electrical connection Cable
Type of switching output PNP
Rated switching current 50mA
Short-circuit protection Yes
No-load current, receiver 15mA
No-load current, transmitter 10mA
Line diameter 2.5mm
Residual ripple 10%
Switching distance 0 – 150mm
Switching frequency 1,000Hz
Voltage drop 2V
Scanning function Dark switching
Reverse polarity protection Yes
Decay time 0.5ms
Absolute repeat accuracy 0.05mm
Operating voltage (DC) 12 – 24V
Display LED display
