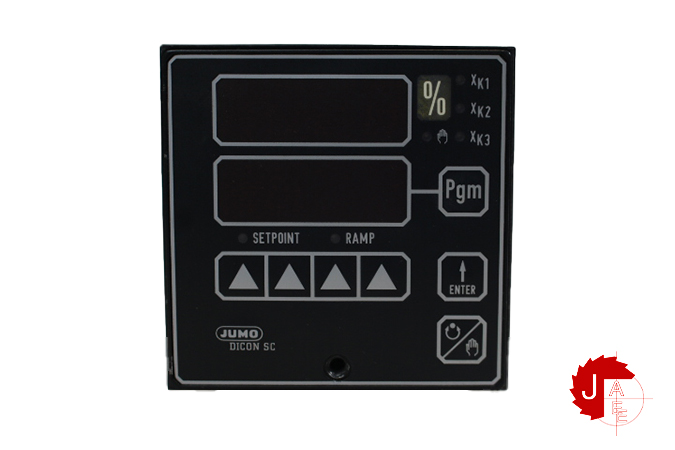

Manufacturer: JUMO
Type: Dicon Sc Temperature Controller
Model: DICON SC
- Input signal: RTD, thermocouple, resistance or voltage
- Input range: -999 to 9999 units
- Control algorithm: PID with auto-tuning function
- Control outputs: up to 4 analog outputs, 0/4 to 20 mA or 0 to 10 V; up to 10 relay outputs, 250 VAC/2A
- Digital inputs: up to 8 inputs for control and programming
- Display: Large, backlit LCD display with 7-segment digits and symbols
- Communication interfaces: RS485, Profibus DP, Modbus RTU, or Ethernet (with optional modules)
- Configuration software, Setup-Pilot, for easy setup and customization
- Advanced features, such as soft start, ramp function, and math and logic functions
- Protection class: up to IP20
- Power supply: 100 to 240 VAC, 50/60 Hz
| Manufacturer | JUMO |
|---|---|
| Model | DICON SC Dicon Sc Temperature Controller |
| Condition | New |
