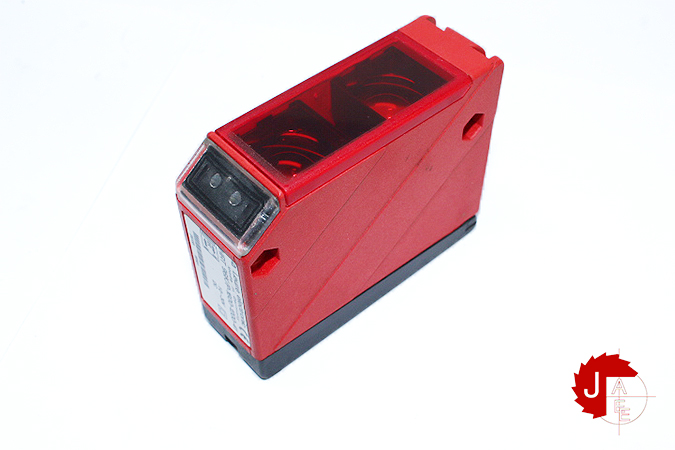

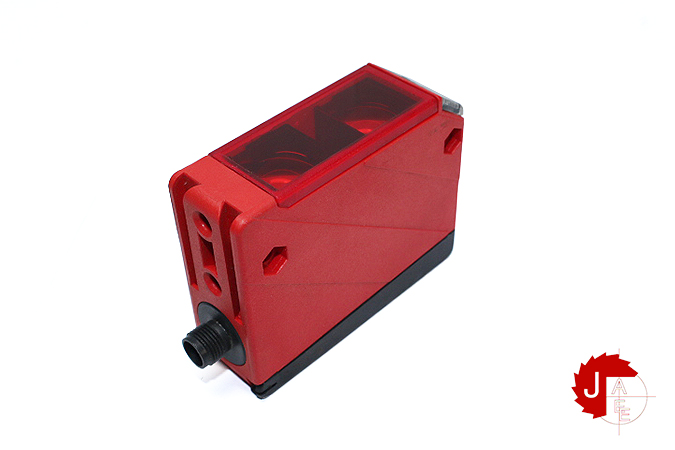

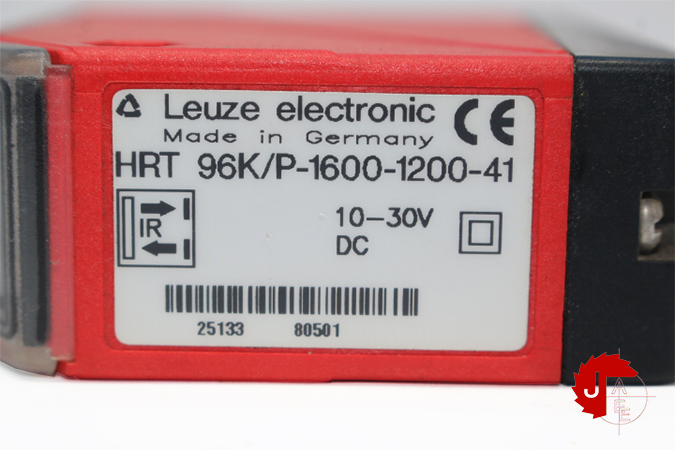

Leuze electronic HRT 96K/P-1600-1200-41 Diffuse sensor with background suppression

Leuze electronic HRT 96K/P-1600-1200-41 Diffuse sensor with background suppression

Manufacturer: Leuze electronic
Type: Diffuse sensor with background suppression
Model: HRT 96K/P-1600-1200-41

Series 96
Operating principle Diffuse reflection principle with background suppression

Operating range Guaranteed operating range
Operating range, white 90% 0.1 … 1.2 m
Operating range, gray 18% 0.1 … 1.1 m
Operating range, black 6% 0.1 … 1 m
Operating range limit Typical operating range
Operating range limit, white 90% 0.1 … 1.8 m
Operating range limit, gray 18% 0.1 … 1.6 m
Operating range limit, black 6% 0.1 … 1.35 m
Light source LED, Infrared

Supply voltage UB 10 … 30 V, DC
Residual ripple 0 … 15 %, From UB
Open-circuit current 0 … 50 mA

Number of digital switching outputs 2 Piece(s)

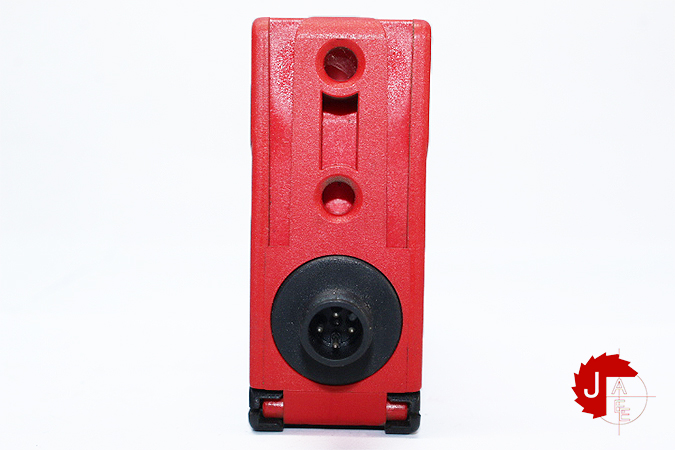

Type of connection Connector
Thread size M12
No. of pins 4 -pin

Type of display LED
Operational controls Multiturn potentiometer

Degree of protection IP 67
Protection class II
