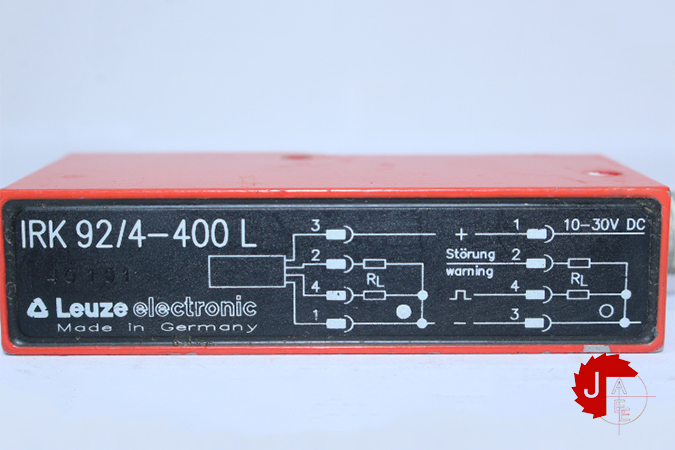

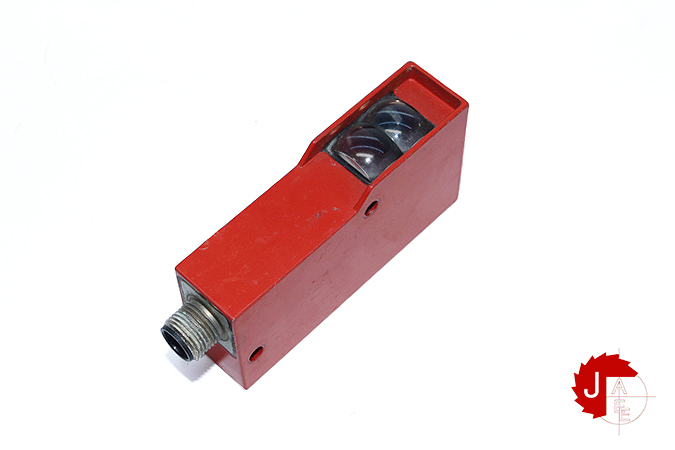

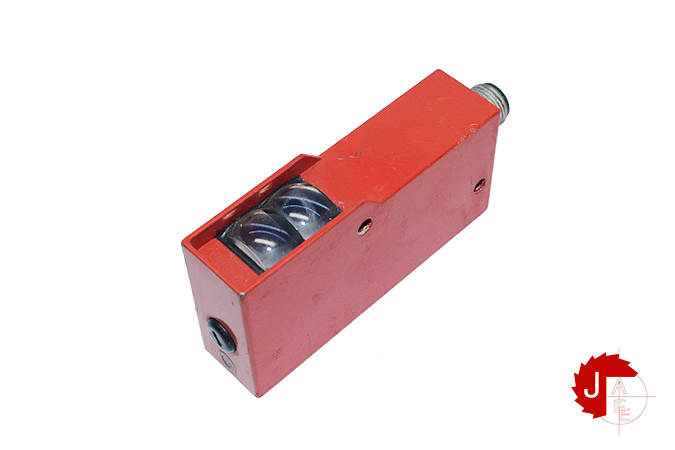

Leuze electronic IRK 92/4-400L Energetic diffuse sensor

Leuze electronic IRK 92/4-400L Energetic diffuse sensor

Manufacturer: Leuze electronic
Type: Energetic diffuse sensor
Model: IRK 92/4-400L

Series 92
Operating range Guaranteed operating range
Operating range, white 90% 0 … 0.4 m
Operating range, gray 18% 0.01 … 0.28 m
Operating range, black 6% 0.015 … 0.23 m
Operating range limit Typical operating range
Operating range limit, white 90% 0 … 0.9 m
Operating range limit, gray 18% 0.01 … 0.47 m
Operating range limit, black 6% 0.015 … 0.35 m
Light source LED, Infrared
Wavelength 880 nm
LED group 1
Type of light spot geometry Round

Number of digital switching outputs 2 Piece(s)

Type of connection Connector
Thread size M12
No. of pins 4 -pin

Supply voltage UB 10 … 30 V, DC

Degree of protection IP 67
Protection class II
