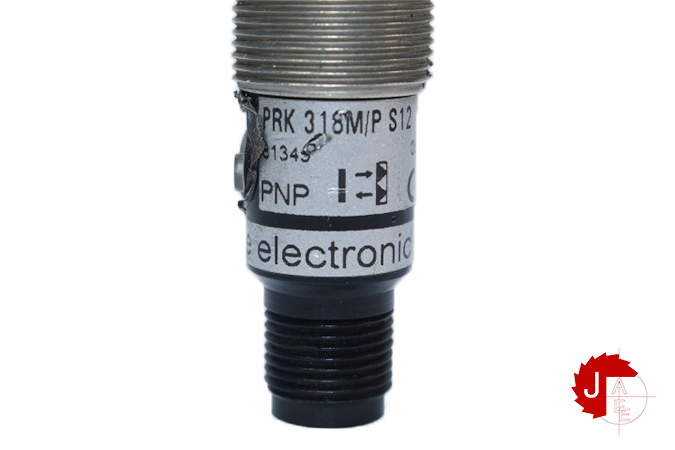

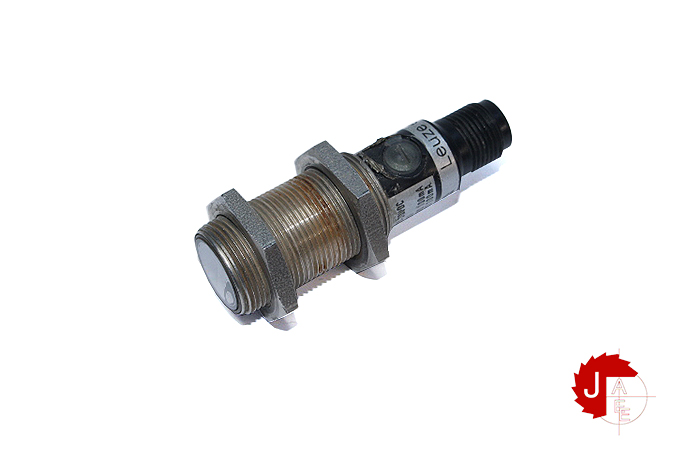

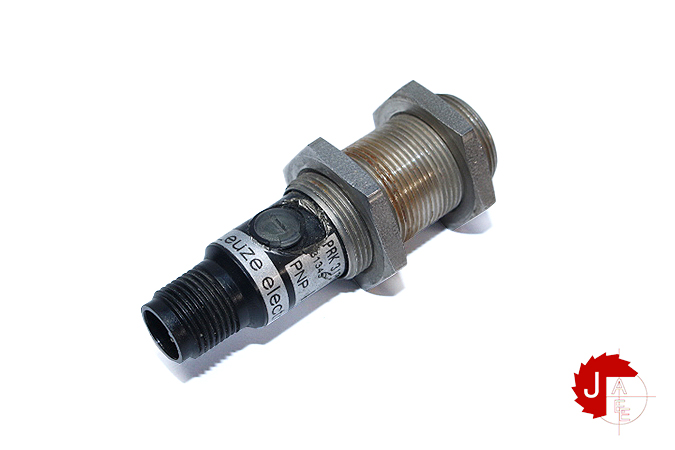

Leuze electronic PRK 318M/P-S12 Polarized retro-reflective photoelectric sensor 50081349
Manufacturer: Leuze electronic
Type: Polarized retro-reflective photoelectric sensor
Model: PRK 318M/P-S12
Part No: 50081349
Series 318
Operating principle Reflection principle
Operating range 0.03 … 4.6 m
Operating range Guaranteed operating range
Operating range limit Typical operating range
The operating range limit 0.03 … 6 m
Beam path Divergent
Light source LED, Red
Wavelength 660 nm
LED group 1
Type of light spot geometry Rectangular

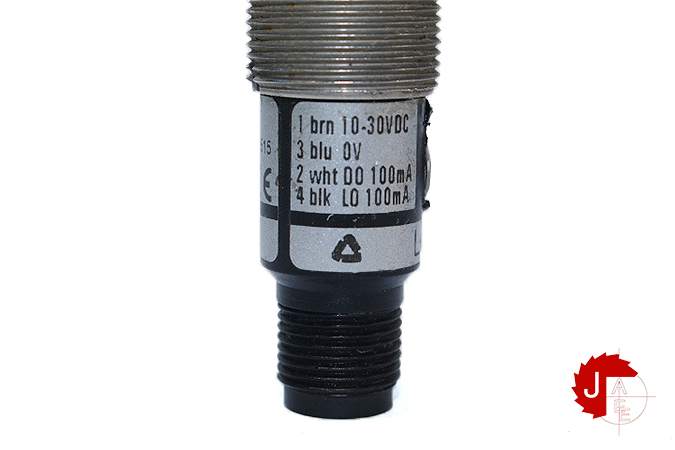

Supply voltage UB 10 … 30 V, DC
Open-circuit current 0 … 25 mA
Function Signal OUT
Voltage supply

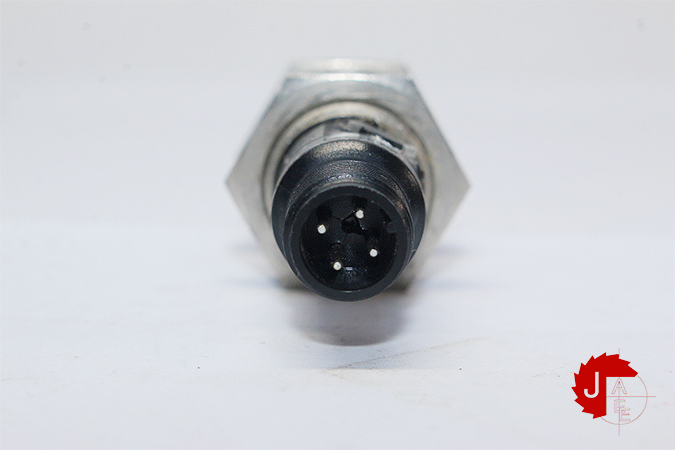

Type of connection Connector
Thread size M12
No. of pins 4 -pin
Encoding A-coded
Thread size M18 x 1 mm
Dimension (Ø x L) 18 mm x 50 mm
Type of display LED
Degree of protection IP 67
Protection class II
| Manufacturer | LEUZE |
|---|---|
| Model | PRK 318M/P-S12 Polarized retro-reflective photoelectric sensor 50081349 |
| Condition | New |
