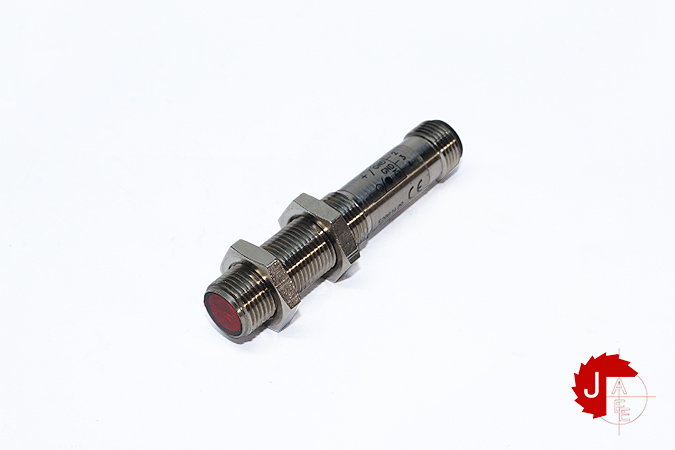

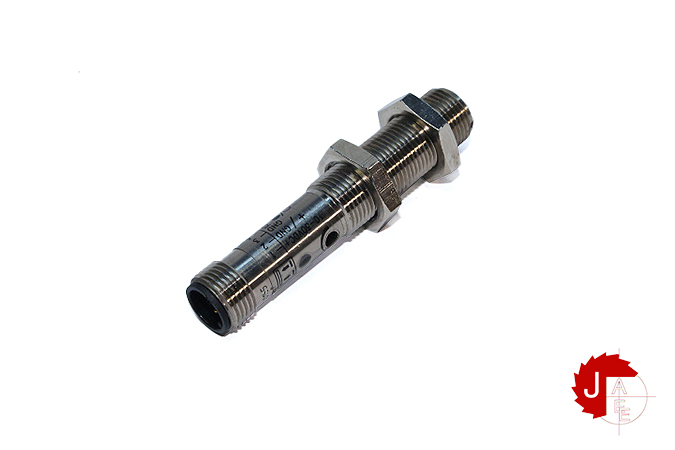

Leuze electronic RT 412M/P200-S12 Energetic diffuse sensor 50081409

Leuze electronic RT 412M/P200-S12 Energetic diffuse sensor 50081409

Manufacturer: Leuze electronic
Type: Energetic diffuse sensor
Model: RT 412M/P200-S12
Part No: 50081409

Series 412
Operating principle Diffuse reflection principle

Operating range Guaranteed operating range
Operating range, white 90% 0 … 0.2 m
Operating range, gray 18% 0.002 … 0.1 m
Operating range, black 6% 0.005 … 0.07 m
Operating range limit Typical operating range
Operating range limit, white 90% 0 … 0.4 m
Operating range limit, gray 18% 0.002 … 0.2 m
Operating range limit, black 6% 0.005 … 0.14 m
Beam path Divergent
Light source LED, Red
Wavelength 660 nm
LED group 1
Type of light spot geometry Round

Supply voltage UB 10 … 30 V, DC
Residual ripple 0 … 10 %, From UB
Open-circuit current 0 … 20 mA

Type of connection Connector

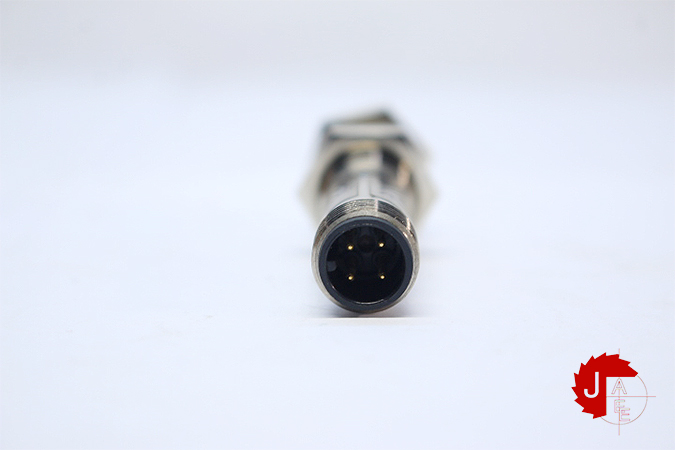

Thread size M12
Type Male
Material Metal

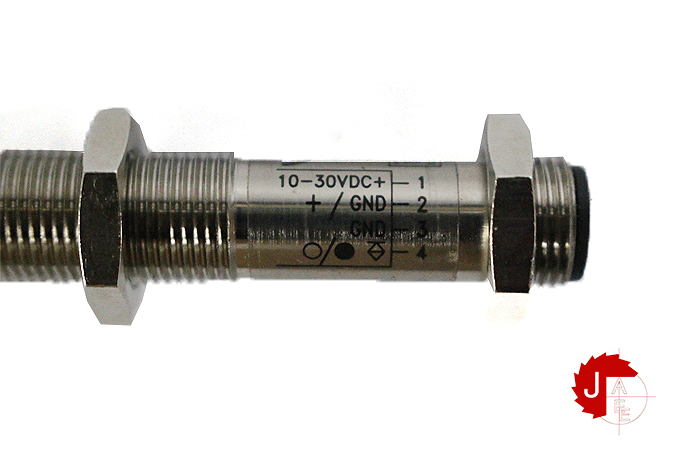

No. of pins 4 -pin

Thread size M12 x 1 mm
Dimension (Ø x L) 12 mm x 65 mm

Degree of protection IP 67
Protection class III

Number of digital switching outputs 1 Piece(s)
