Leuze electronic SLSER 8/66-S12 Single light beam safety device receiver 50038792
Availability: 1 in stock

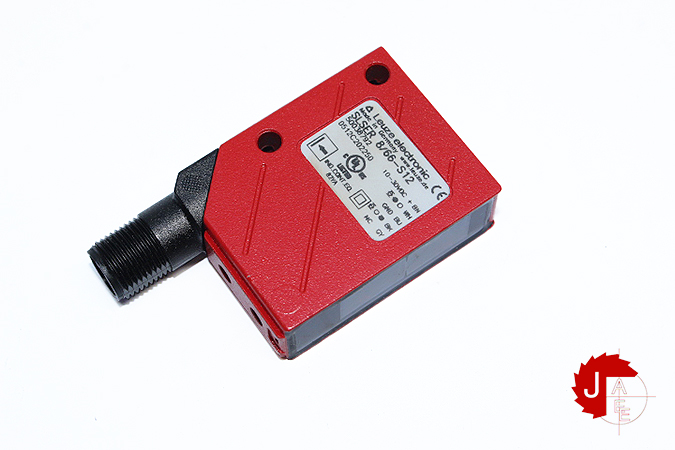

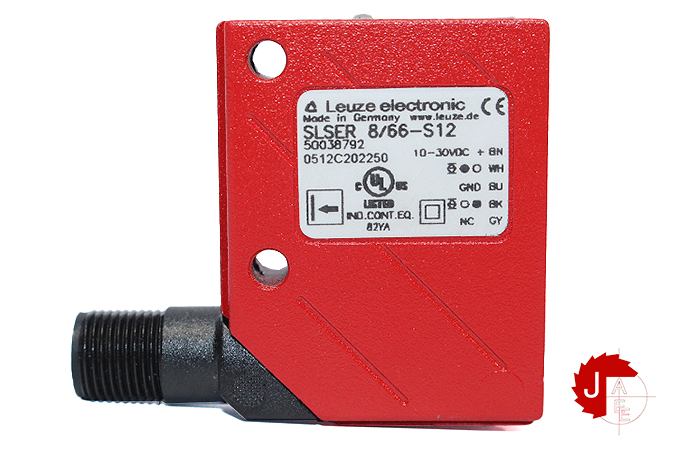

Leuze electronic SLSER 8/66-S12 Single light beam safety device receiver 50038792
Manufacturer: Leuze electronic
Type: Single light beam safety device receiver
Model: SLSER 8/66-S12
Part No: 50038792
Series 8
Operating principle Through-beam principle
Device type Receiver
Supply voltage UB 10 … 30 V, DC
Number of digital switching outputs 2 Piece(s)
Voltage type DC
Switching voltage high: ≥(UB-2V)
low: ≤ 2 V
Switching element Transistor, PNP
Switching principle Light switching
Function Signal OUT
Voltage supply
Type of connection Connector
Thread size M12
Material Metal
No. of pins 5 -pin
Dimension (W x H x L) 15 mm x 48 mm x 38 mm
Degree of protection IP 67
Protection class II
Number of digital switching outputs 2 Piece(s)
Number of connections 1 Piece(s)
| Manufacturer | LEUZE |
|---|---|
| Model | SLSER 8/66-S12 Single light beam safety device receiver 50038792 |
| Condition | New |
