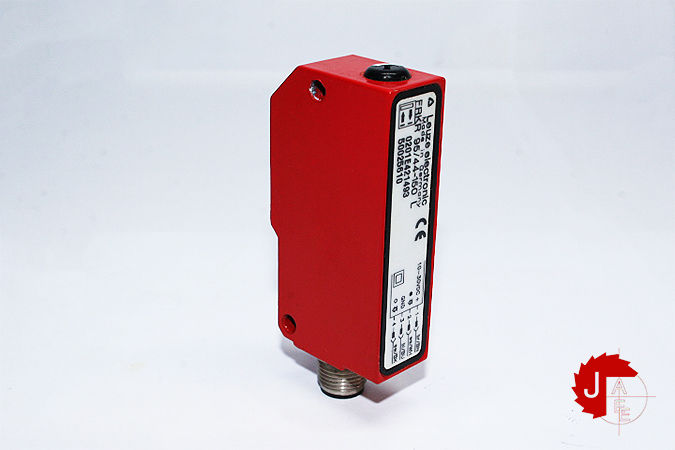

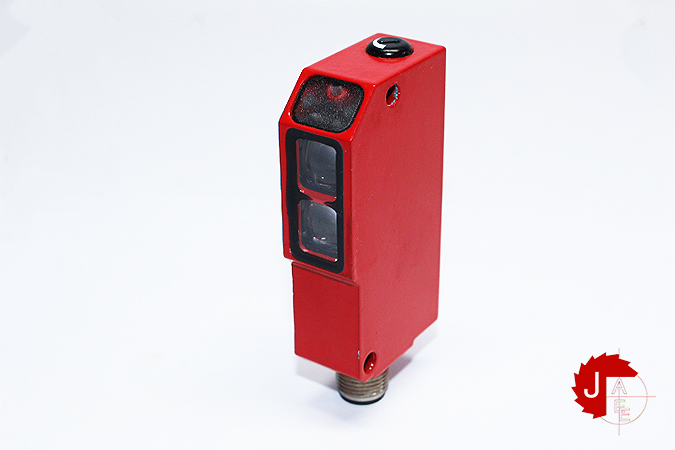

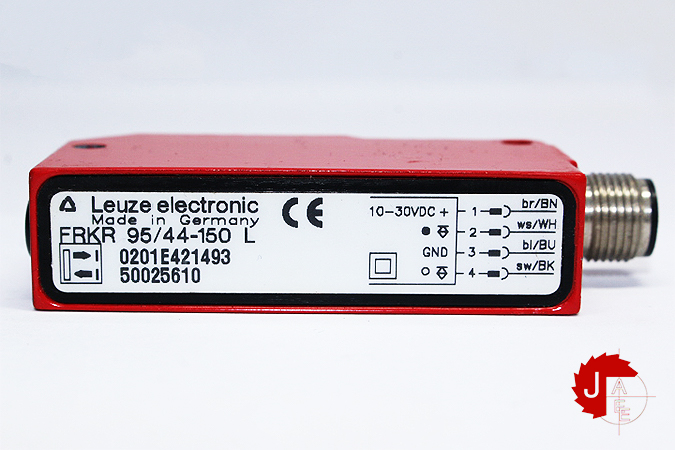

Leuze FRKR 95/44-150 L Diffuse sensor with background suppression 50025610

Manufacturer: Leuze
Type: Diffuse sensor with background suppression
Model: FRKR 95/44-150 L
Art No: 50025610

Operating range, white 90%: 0.012 … 0.15 m
Operating range, gray 18%: 0.015 … 0.149 m
Operating range, black 6%: 0.02 … 0.146 m
Electrical Design: PNP
Supply voltage: 10 … 30 V, DC
Residual ripple: 0 … 15 %
Open-circuit current: 0 … 35 mA
Switching frequency : 1,000 Hz
Degree of protection : IP 67

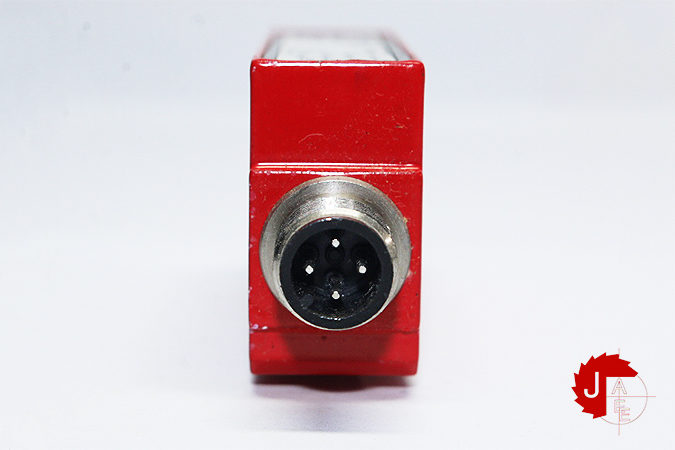

No. of pins: 4 -pin
Dimension (W x H x L): 17 mm x 66 mm x 35 mm
