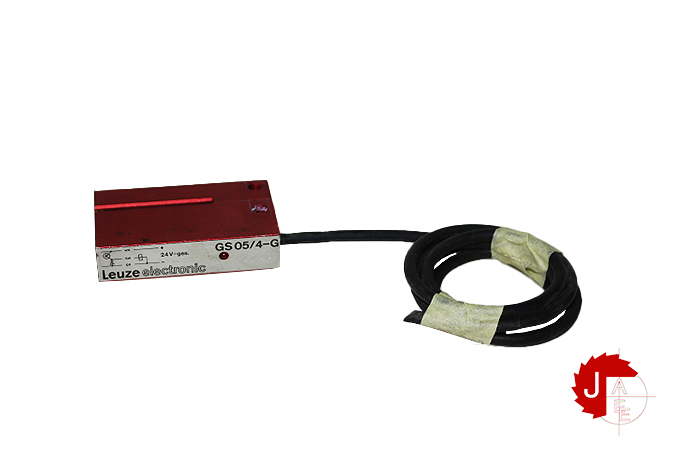

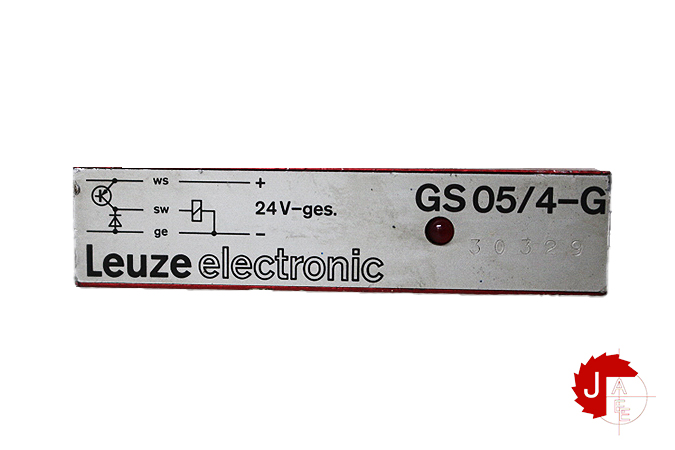

Leuze GS 05/4-G Forked photoelectric sensors

Leuze GS 05/4-G Forked photoelectric sensors

Manufacturer: Leuze
Type: Forked photoelectric sensors
Model: GS 05/4-G

Optical data

Mouth width 2mm or 5mm
Timing
Switching frequency 5000Hz
Response time 0.1ms
Delay before start-up 100ms
Electrical data
Operating voltage UB
or protective extra-low voltage (VDE 0100/T 410)
10 … 30VDC (incl. residual ripple)
Residual ripple  15% of UB
Bias current  30mA
Switching output 1 PNP transistor output /1 NPN transistor output
Function characteristics light/dark switching
Signal voltage high/low (UB-2V)/ 2V
Output current 250mA
Sensitivity adjustable with multiturn potentiometer
Indicators
LED yellow light path free
Mechanical data
Housing aluminium, anodised
Weight 120g
Connection type cable 2000mm (cross section 5×0.25mm²)
Environmental data
Ambient temp. (operation/storage) -20°C … +60°C/-30°C …+70°C
Protective circuit
protection for all outputs
1, 2
VDE safety class III
Protection class IP 65
