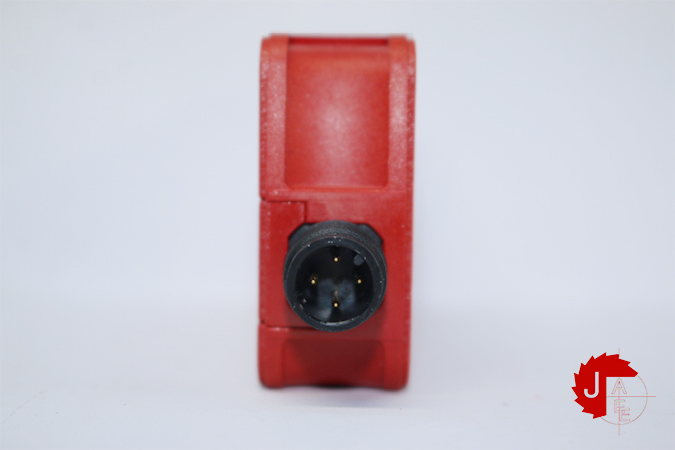

Leuze HRTR 46B/66-S12 Diffuse sensor with background suppression 50106555

Manufacturer: Leuze
Type: Diffuse sensor with background suppression
Model: HRTR 46B/66-S12
Part No: 50106555

Series 46B
Operating principle Diffuse reflection principle with background suppression
Special version Small light spot (S)
Operating range Guaranteed operating range
Operating range, white 90% 0.01 … 0.7 m
Operating range, gray 18% 0.03 … 0.65 m
Operating range, black 6% 0.06 … 0.55 m
Operating range limit Typical operating range

Supply voltage UB 10 … 30 V, DC
Residual ripple 0 … 15 %, From UB
Open-circuit current 0 … 30 mA

Number of digital switching outputs 2 Piece(s)

Switching element Transistor, Push-pull
Switching principle Light switching (PNP)/dark switching (NPN)

Switching element Transistor, Push-pull
Switching principle Dark switching (PNP)/light switching (NPN)
