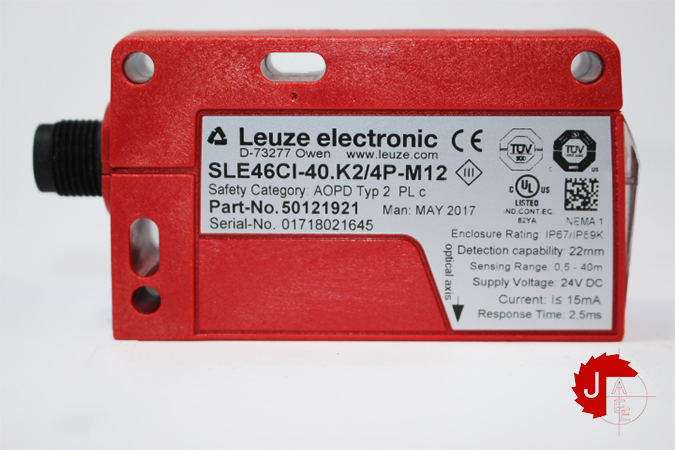

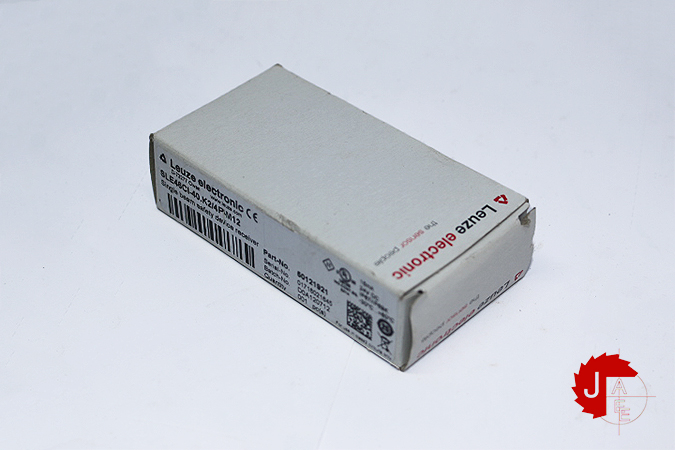

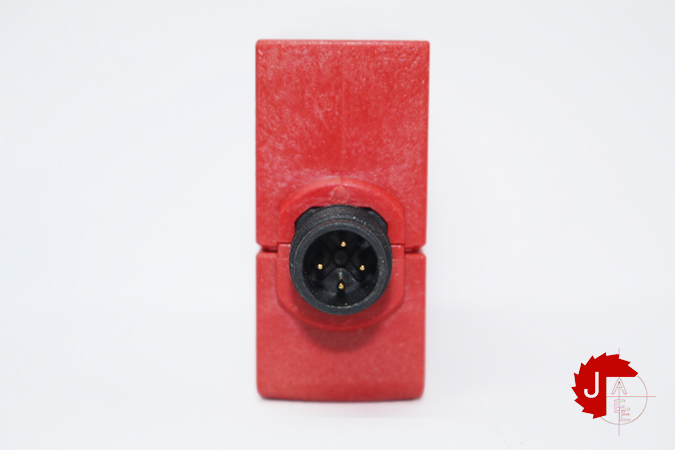

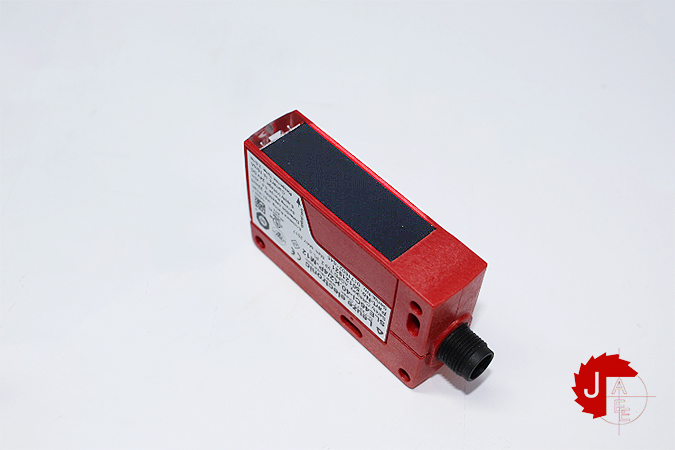

Leuze SLE46CI-40.K2/4P-M12 Single light beam safety device receiver

Leuze SLE46CI-40.K2/4P-M12 Single light beam safety device receiver

Manufacturer: Leuze
Type: Single light beam safety device receiver
Model: SLE46CI-40.K2/4P-M12

Series 46C
Functions Alignment indicator / Diagnostic output
Supply voltage UB 24 V, DC, -20 … 20 %, Incl. residual ripple
Residual ripple 10 %, From UB
Open-circuit current 0 … 15 mA
Number of digital switching outputs 2 Piece(s)

Switching output 1
Switching element Transistor, PNP
Switching principle Dark switching
Function Diagnostic output

Switching output 2
Switching element Transistor, PNP
Switching principle Light switching
Function Switching output
