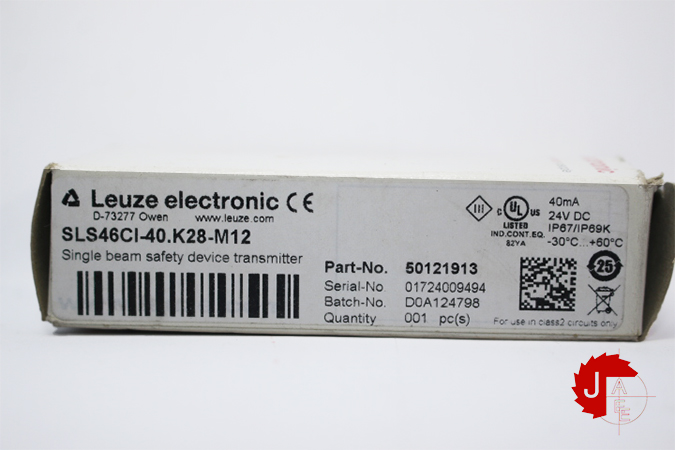

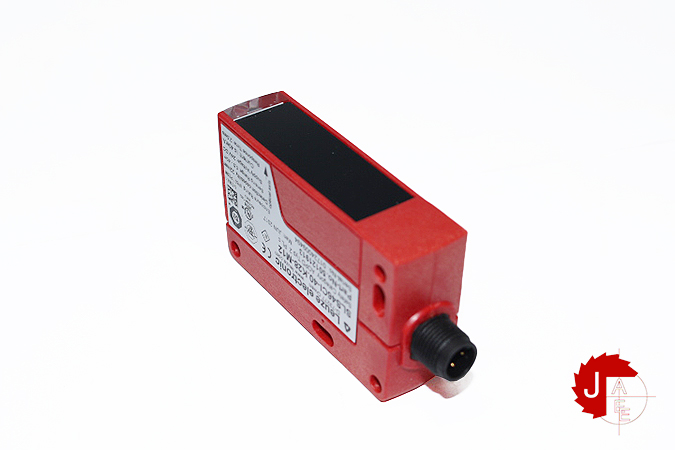

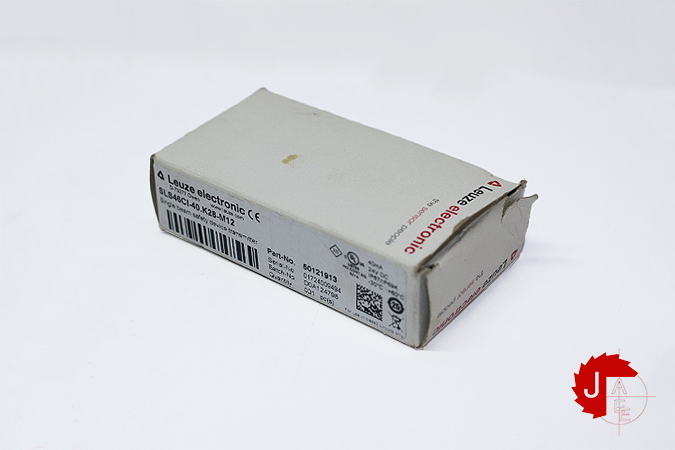

Leuze SLS46CI-40.K28-M12 Single light beam safety device transmitter

Manufacturer: Leuze
Type: Single light beam safety device transmitter
Model: SLS46CI-40.K28-M12

Series 46C
Functions Activation input

Operating range 0.5 … 40 m
Operating range limit 0.5 … 48 m
Light source LED, Infrared
Wavelength 940 nm

Protective circuit Polarity reversal protection
Short circuit protected
Supply voltage UB 24 V, DC, -20 … 20 %, Incl. residual ripple
Residual ripple 10 %, From UB

Number of connections 1 Piece(s)
Function Signal IN
Voltage supply

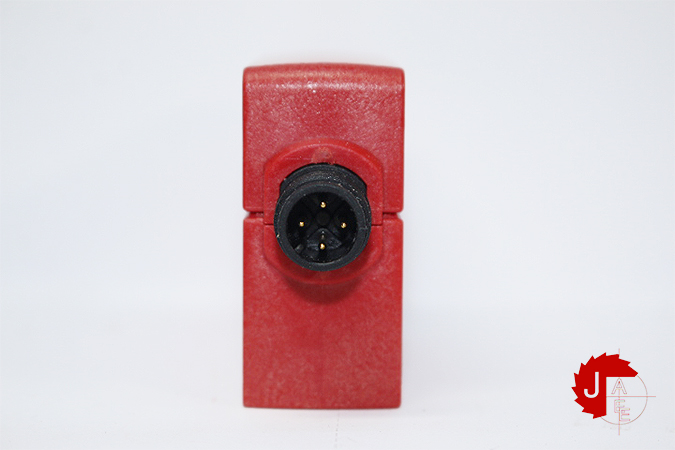

Type of connection Connector
Thread size M12
Material Plastic
No. of pins 4 -pin
