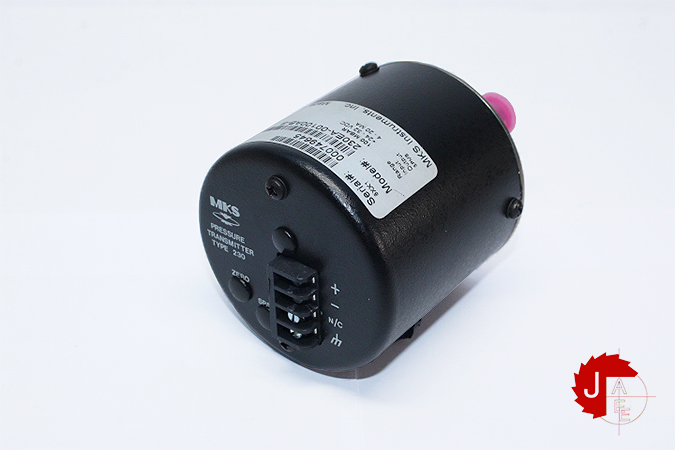

MKS TYPE 230 Industrial Absolute Pressure Transmitters 230EA-00100AB-S

MKS TYPE 230 Industrial Absolute Pressure Transmitters 230EA-00100AB-S

Manufacturer: MKS
Type: TYPE 230
Model: Industrial Absolute Pressure Transmitters

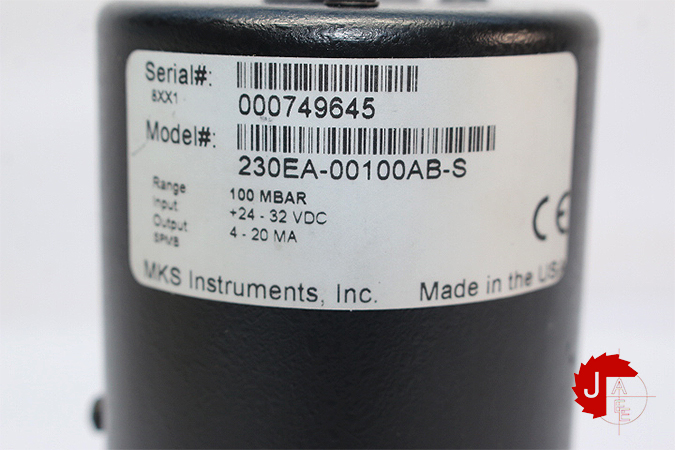

Art No: 230EA-00100AB-S

Type Vacuum Pressure Transmitter
Sensor Type Industrial Capacitance Manometer
Measurement Type Absolute
Full Scale Range 10 Torr
Fitting Type0.5 in. OD tube
Accuracy ±0.5% of Reading
Analog Output 4 – 20 mA

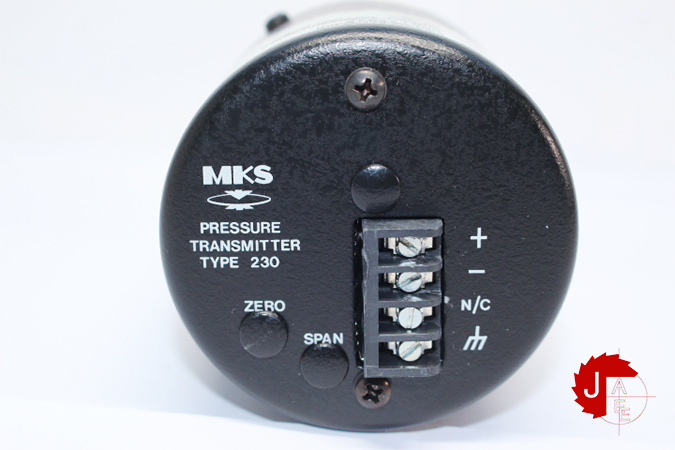

Electrical Connector Terminal Block
Zero Temperature Coefficient 200 ppm
Span Temperature Coefficient 400 ppm
Operating Temperature Range 0 – 100°C
Exposed Materials Inconel, or Inconel and Stainless Steel (for fittings)
Volume7.0 cc
Overpressure Limit 120% of Full Scale or 35 psia (240 kPa), whichever is greater without damage
Power Requirements 24 – 32 VDC
