NATIONAL INSTRUMENTS NI SCXI-1326 High-Voltage Terminal Block

NATIONAL INSTRUMENTS NI SCXI-1326 High-Voltage Terminal Block

Manufacturer: National Instruments
Type: High-Voltage Terminal Block
Model: NI SCXI-1326

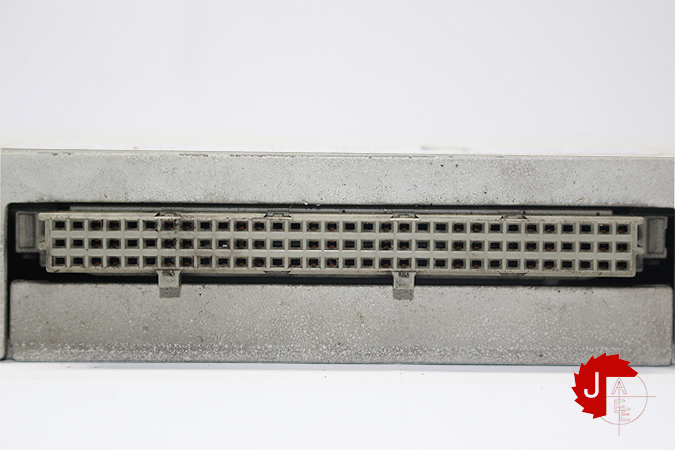

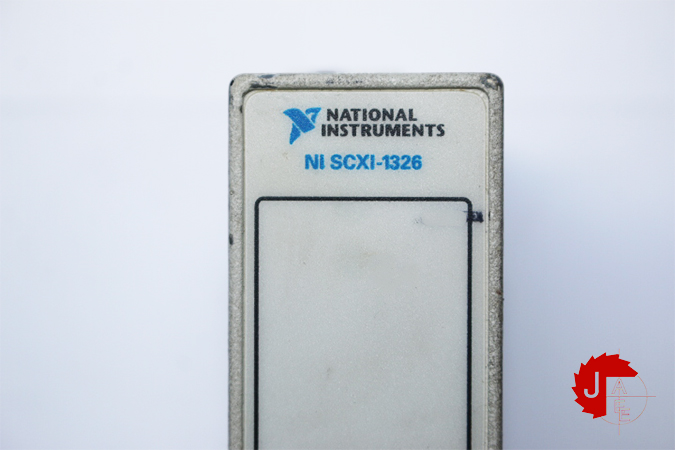

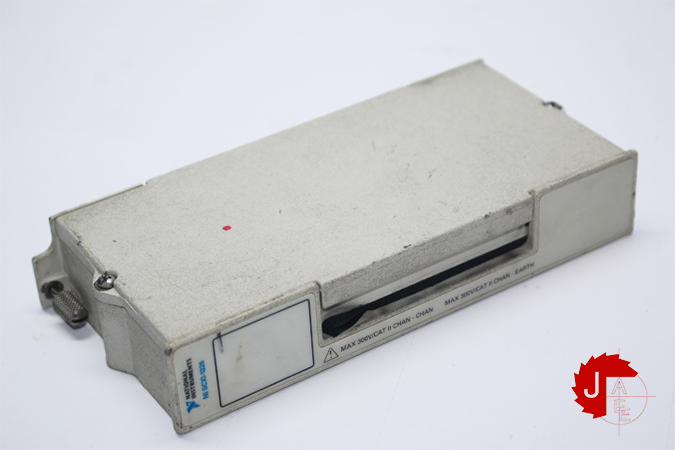

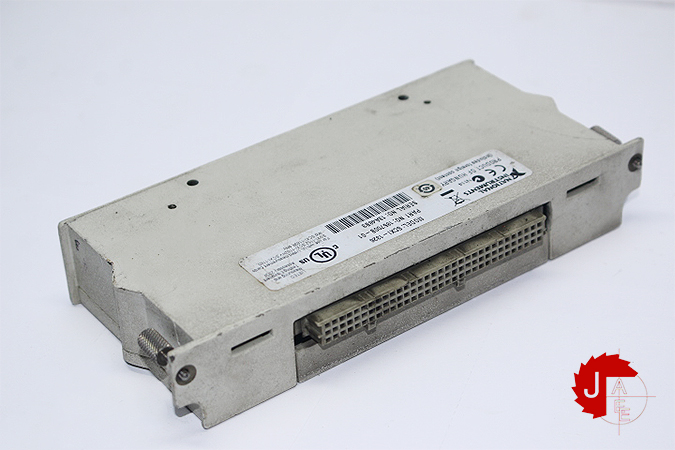

The SCXI-1326 terminal block is a shielded board with supports to connect it to the module front connector.
The terminal block has 48 screw terminals for easy signal connections.
The terminals labeled VCC on the SCXI-1326 terminal block are not used
with the SCXI-1162HV or the SCXI-1163R. The terminals labeled GND
are not used on the SCXI-1162. The screw terminals are arranged in
eight groups of six terminals. Each group is isolated from the other groups.
The six terminals in a group consist of a VCC, GND, and four channels.
The use of these terminals is module dependent and is summarized in the
following table.

Common-mode isolation
Bank to bank …………………………….. 300 Vrms
Bank to earth.……………………………. 300 Vrms
