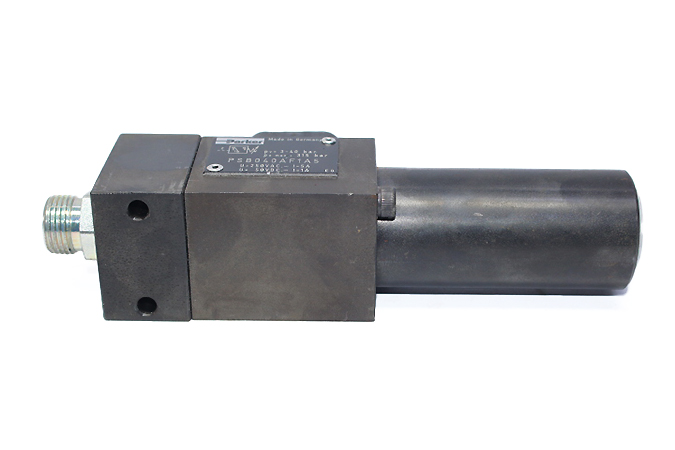

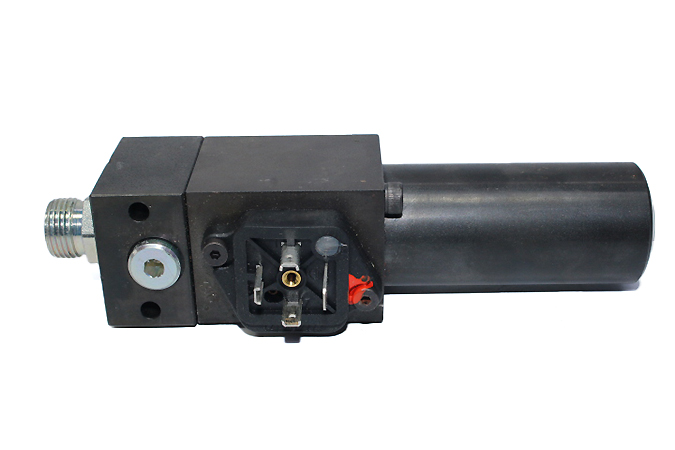

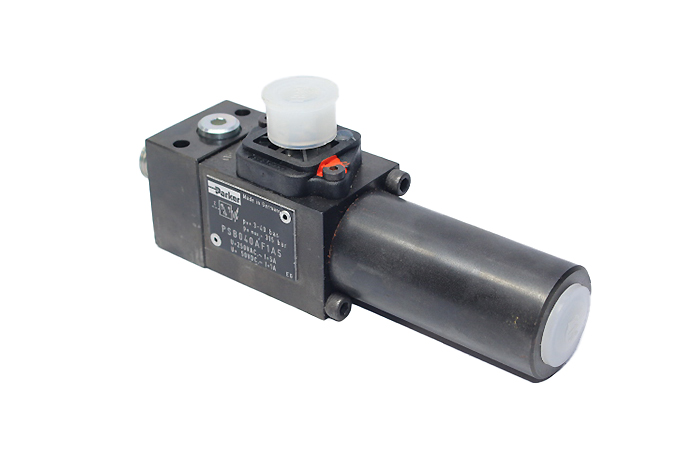

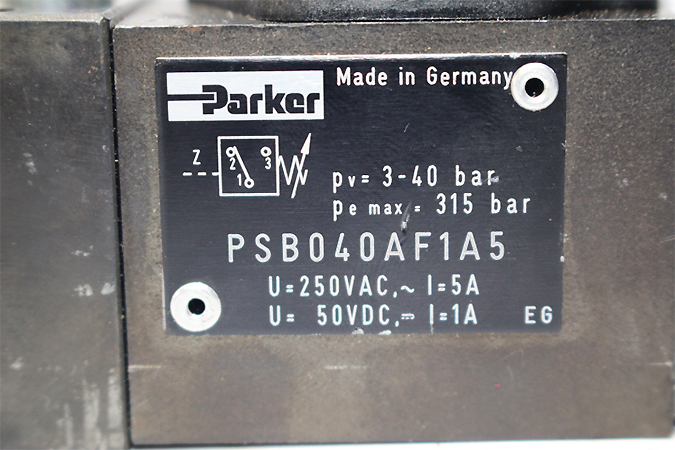

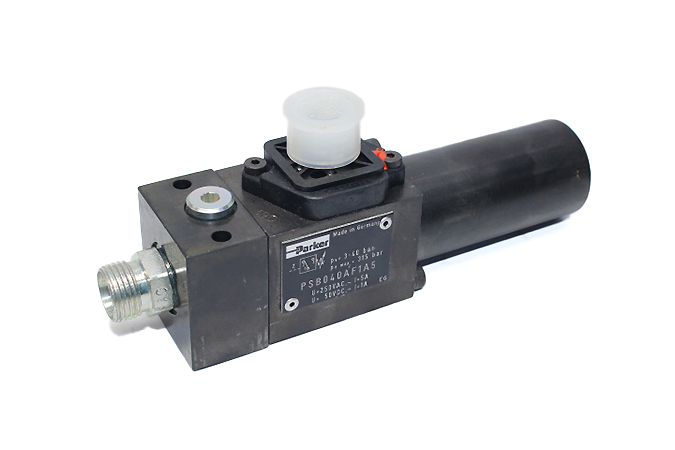

Parker PSB040AF1A5 Pressure Switch

Manufacturer: Parker
Type: Pressure Switch
Model: PSB040AF1A5

Electro-hydraulic pressure switches series PSB are robust, long-life high performance devices that provide an electrical signal when sensed pressure rises above or falls below the selected setting. The maximum operating pressure is 315 bar.

Pressure Range (bar): 3-40
Connection: Flange
Adjustment Type: Manual switching point
Switching Pressure: 3 to 40 bar
Product Series: Pressure switch
Actuation Type: Electro-hydraulically
Pressure Adjustment Control Type: Hexagon socket
Connection Type: Flange, front face
Mounting Type: Flange
Seal Material: NBR
Weight: 1 kg
Mounting Position: Unrestricted
Locking Mechanism: na
Maximum Operating Pressure: 315 bar
Duty Cycle: Max. 1/s
Maximum Flow Rate: N/A
Maximum Operating Temperature: 60 °C
Minimum Operating Temperature: -20 °C
Seal Material: NBR
Body Material: Steel
