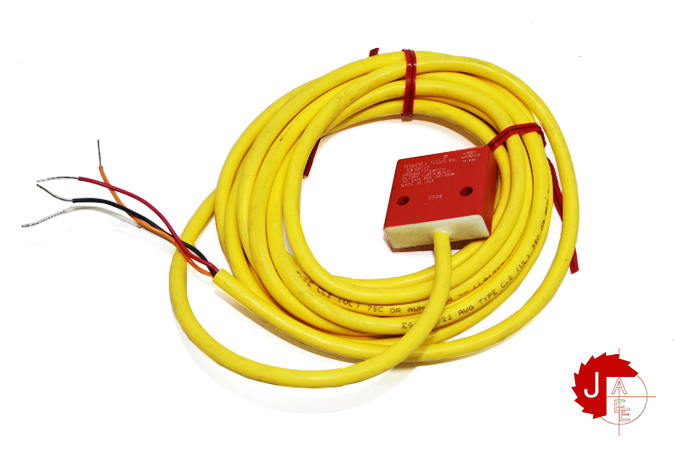

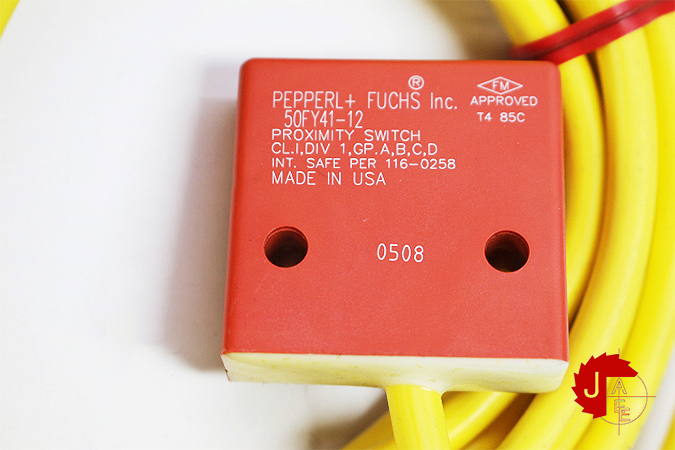

PEPPERL+FUCHS 50FY41-12 Magnetic field sensor

Manufacturer: PEPPERL+FUCHS
Type: Magnetic field sensor
Model: 50FY41-12

PEPPERL+FUCHS 50FY41-12 Magnetic field sensor

Switching function Normally open (NO)
Output type PNP/NPN
Rated operating distance 2.5 mm at 0 mm offset, 1.3 mm at 3.5 mm offset, 0 mm at 4.0 mm offset
Installation non-flush
Output polarity DC
Output type 4-wire

Operating voltage 10 … 12 V
Short-circuit protection NO
Voltage drop 7 V @ 10 K load, 12 V supply
Operating current 0.5 mA
Current consumption 30 mA
