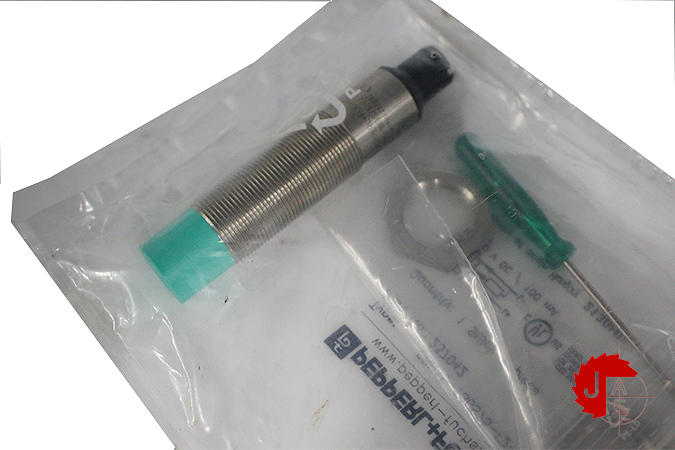

PEPPERL+FUCHS CBN15-18GS75-E2-V1 Capacitive sensor 237042

PEPPERL+FUCHS CBN15-18GS75-E2-V1 Capacitive sensor 237042

Manufacturer: PEPPERL+FUCHS
Type: Capacitive sensor
Model: CBN15-18GS75-E2-V1
Art No: 237042

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 2 … 15 mm
Installation non-flush
Output polarity DC
Output type 3-wire

Installation conditions
A 30 mm
B 18 mm
C 30 mm
F 36 mm
Operating voltage 10 … 30 V
Switching frequency 0 … 100 Hz
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
