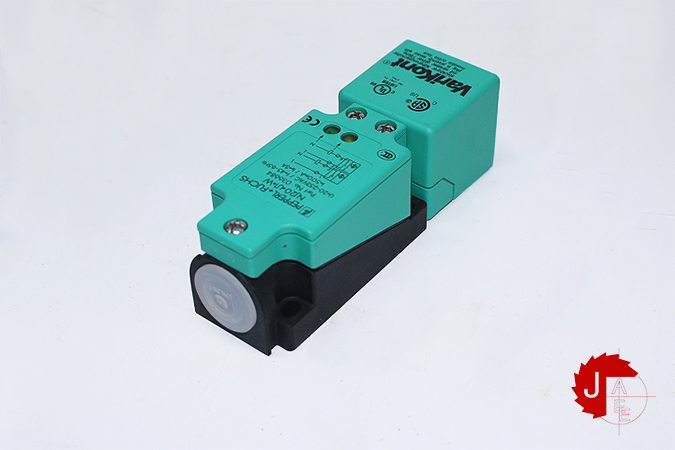

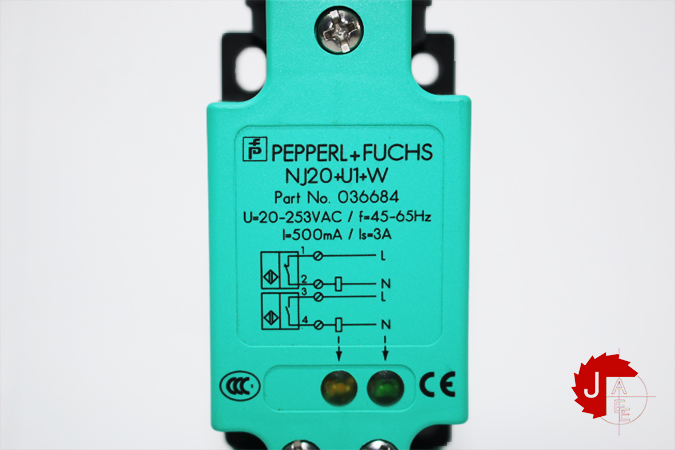

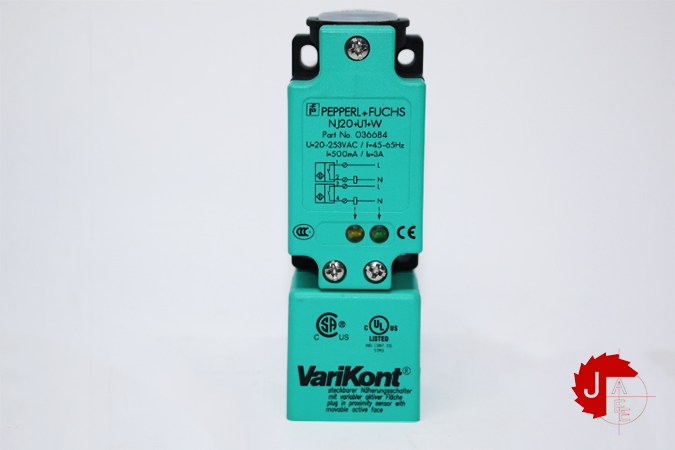

PEPPERL+FUCHS NJ20+U1+W Inductive sensor

Manufacturer: PEPPERL+FUCHS
Type: Inductive sensor
Model: NJ20+U1+W

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 20 mm
Installation flush
Output polarity DC
Assured operating distance 0 … 16.2 mm
Actual operating distance 18 … 22 mm typ. 20 mm

Nominal ratings
Operating voltage 10 … 30 V
Switching frequency 0 … 150 Hz
Hysteresis 1 … 10 typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2.8 V
