Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NJ4-12GM40-E2-V1
Art No: 282950
Rated Operating Distance: 4 mm
Assured Operating Distance: 0 … 3.24 mm
Operating Voltage: 10 … 60 V DC
Switching Current: 0 … 200 mA
No-Load Supply Current I0: ≤ 9 mA
Voltage Drop Ud: ≤ 3 V
Signal Output: PNP
Switching Function: Normally Open
Switching Frequency f: 0 … 2000 Hz
Installation: Non-Flush
Protection Degree: IP67
Ambient Temperature: -25 … 70 °C

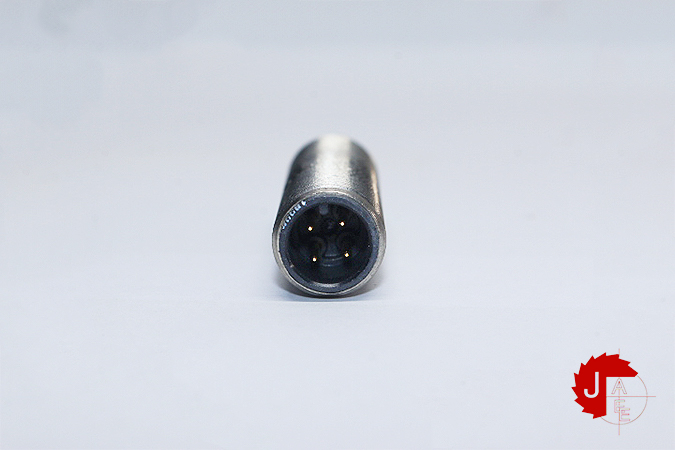

Connection: Connector M12 x 1 , 4-pin
Diameter, Length: 12, 50 mm
| Manufacturer | PEPPERL+FUCHS |
|---|---|
| Model | NJ4-12GM40-E2-V1 Inductive Sensor 282950 |
| Condition | New |
