Manufacturer: Pepperl+Fuchs
Type: Inductive sensor

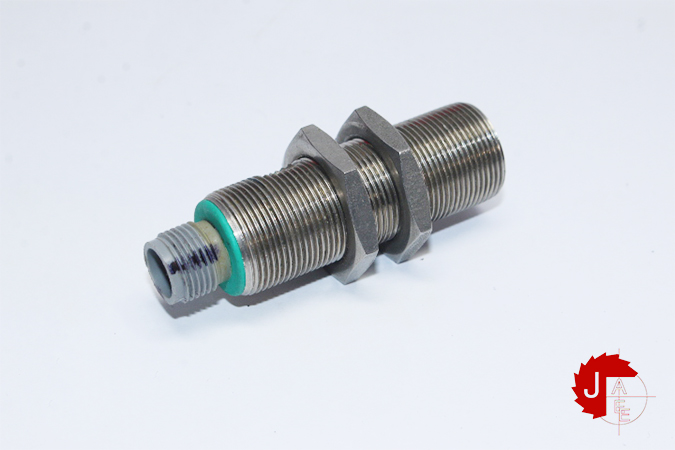

Model: NJ5-18GM50-A2-V1
Switching element function: PNP NO/NC
Rated operating distance: 5 mm
Installation: flush
Assured operating distance: 0 … 4.05 mm
Operating voltage: 10 … 60 V
Switching frequency: 0 … 500 Hz
Voltage drop: less than or equal to 3 V
Operating current: 0 … 400 mA
Off-state current: 0 … 0.5 mA
No-load supply current: less than or equal to 15 mA
Switching state indicator : LED, yellow
Housing diameter: 18 mm
Degree of protection : IP67
Connection type : Connector M12 x 1 , 4-pin
| Manufacturer | PEPPERL+FUCHS |
|---|---|
| Model | NJ5-18GM50-A2-V1 Inductive sensor |
| Condition | NEW OUT OF BOX |
