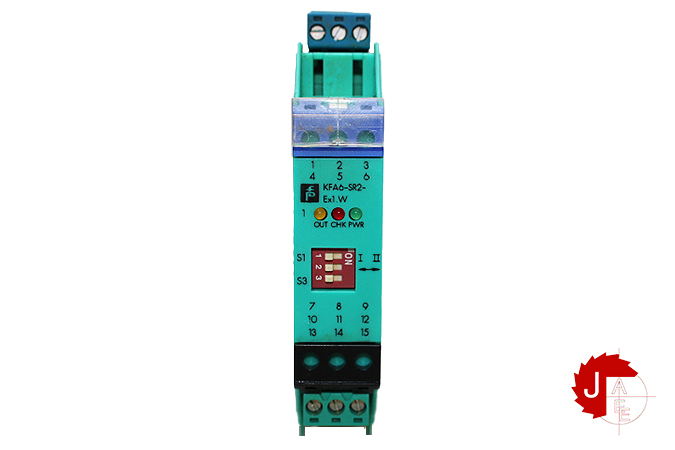

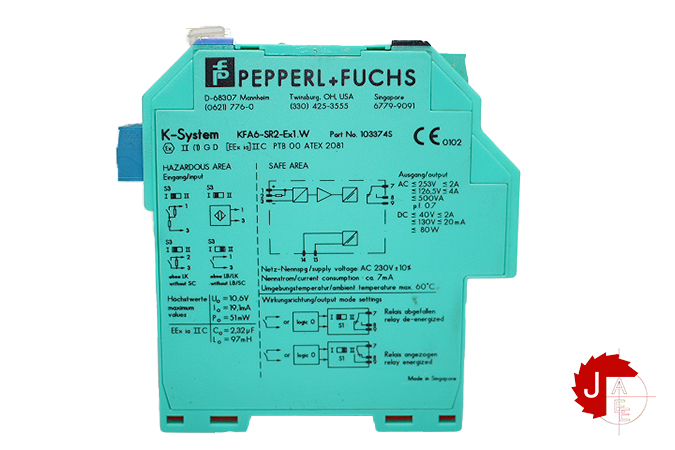

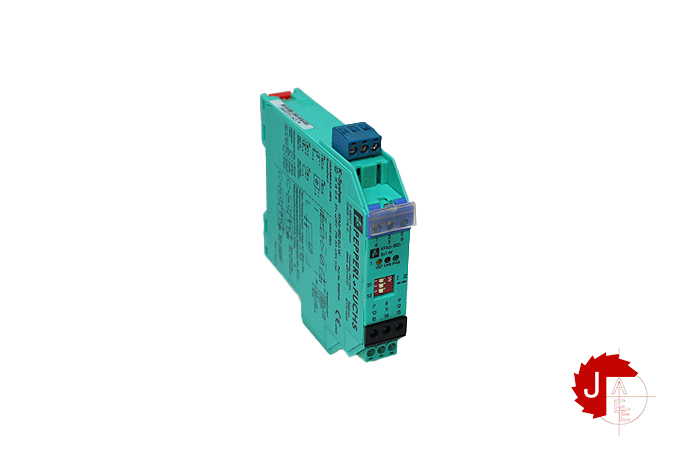

PEPPERL+FUCHS KFA6-SR2-Ex1.W Switch Amplifier

Manufacturer: PEPPERL+FUCHS
Type: SWITCH AMPLIFIER
Model: KFA6-SR2-EX1.W
Part No.: 37368S

Signal Type: Digital Input
Supply Voltage: 207 … 253 VAC
Frequency: 45 … 65 Hz
Power Consumption: ≤ 1 W
Connection: terminals 14, 15

Input:
Connection: terminals 1+, 2+, 3-
Connection Side: field side
Open Circuit Voltage/Short-Circuit Current: approx. 8 V DC / approx. 8 mA
Switching Point/Switching Hysteresis: 1.2 … 2.1 mA / approx. 0.2 mA

Output:
Connection: terminals 7, 8, 9
Connection Side: control side
Energized/De-energized Delay: approx. 20 ms / approx. 20 ms
Contact Loading: 253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load
