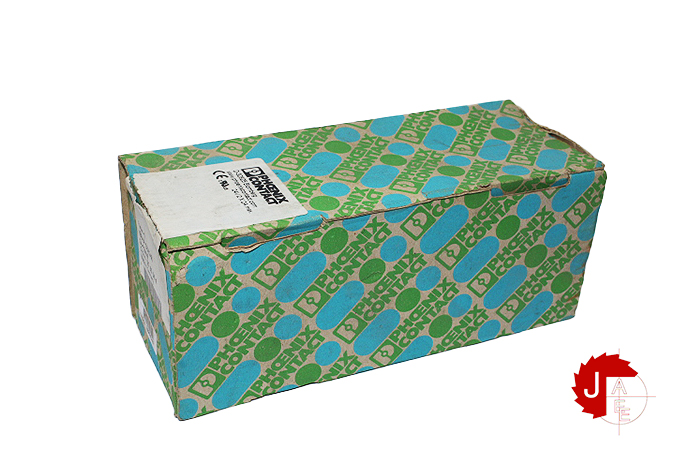

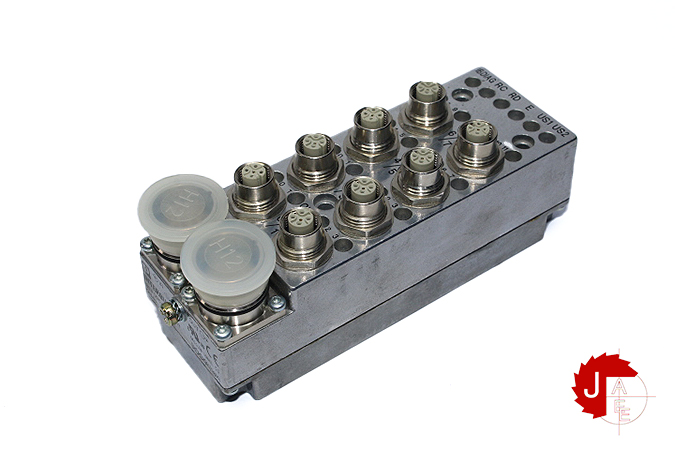

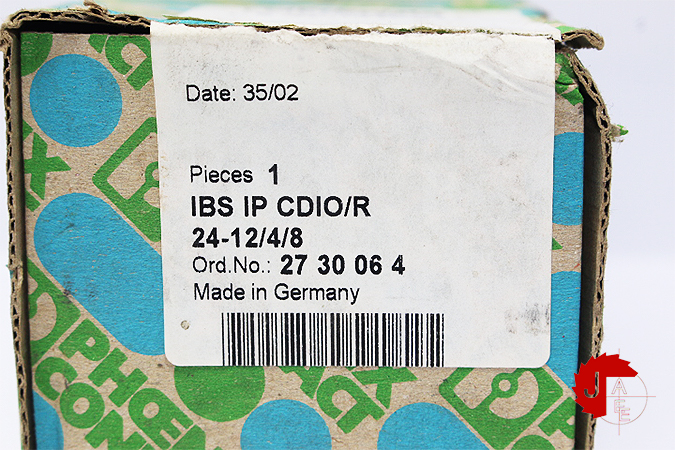

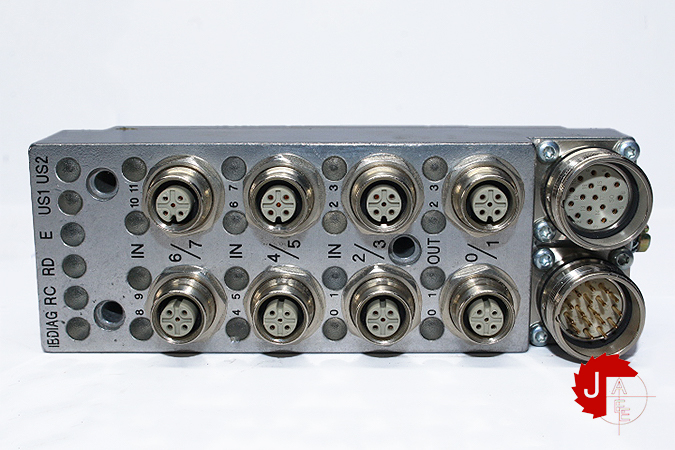

PHOENIX CONTACT IBS IP CDIO/R 24-12/4/8 I/O module 2730064

Manufacturer: PHOENIX CONTACT
Type: I/O module
Model: IBS IP CDIO/R 24-12/4/8
Part No.: 2730064

Inputs
Number of inputs: 12
Connection technology: 4-wire
Input voltage: 24 V DC
Input voltage range “0” signal: -30 V … 5 V
Input voltage range “1” signal: 13 V … 30 V

Outputs
Number of outputs: 4
Connection technology: 3-conductor (shielded)
Type of protection: Short-circuit protection, polarity reversal protection

Residual ripple: 3.6 V
Degree of protection: IP65
