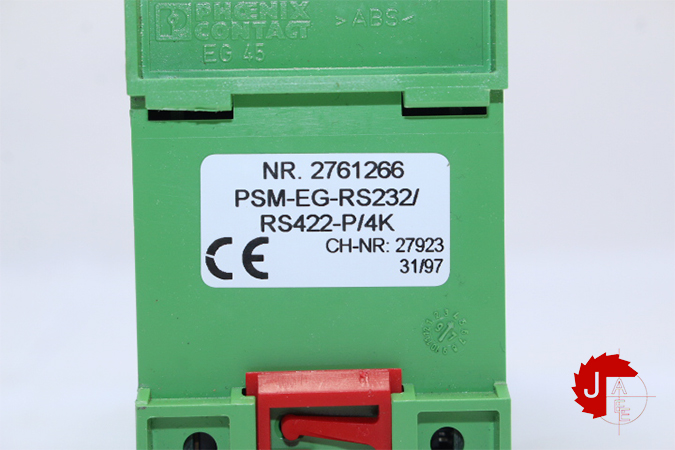

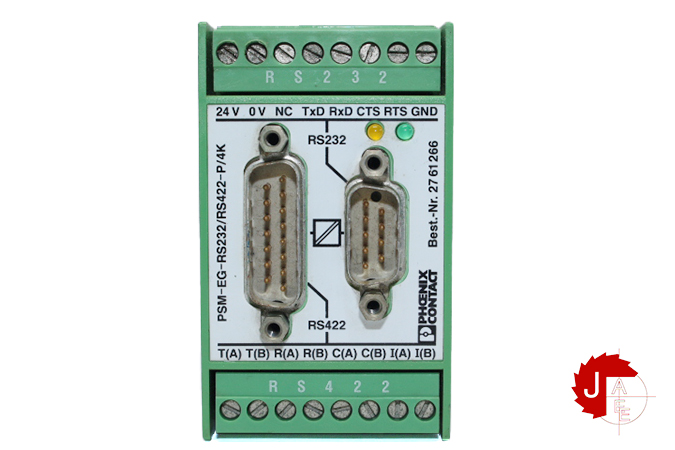

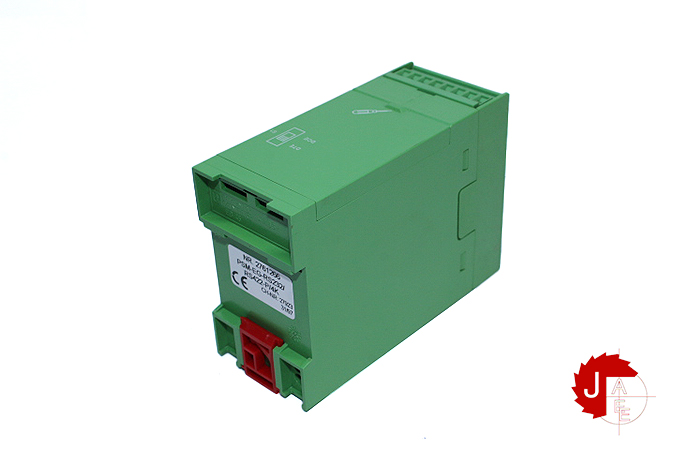

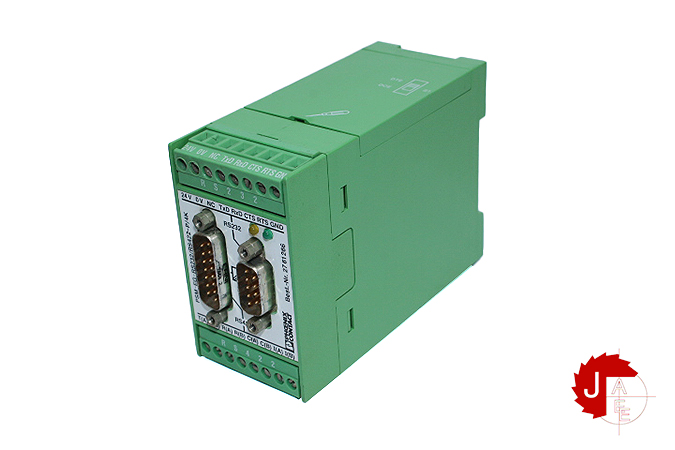

PHOENIX CONTACT PSM-EG-RS232/RS422-P/4K Interface converter 2761266

Manufacturer: PHOENIX CONTACT
Type: Interface converter
Model: PSM-EG-RS232/RS422-P/4K
Part No: 2761266

Interface converter, for converting RS-232 (V.24) to RS-422 (V.11), with electrical isolation, 4 channels, rail-mountable

Electrical isolation VCC // V.24 (RS-232) // RS-422
Maximum power dissipation for nominal condition 3.12 W
Test voltage data interface/power supply 2.5 kV 2.5 kV AC
Test voltage data interfaces 2.5 kV AC
Supply
Supply voltage range 19.2 V DC … 28.8 V DC
Typical current consumption 130 mA (24 V DC)
