Pilz PNOZ V 30s 24VDC 3n/o 1n/c 1n/c t Safety Relay

Pilz PNOZ V 30s 24VDC 3n/o 1n/c 1n/c t Safety Relay

Manufacturer: Pilz
Type: Safety Relay
Model: PNOZ V 30s 24VDC 3n/o 1n/c 1n/c t

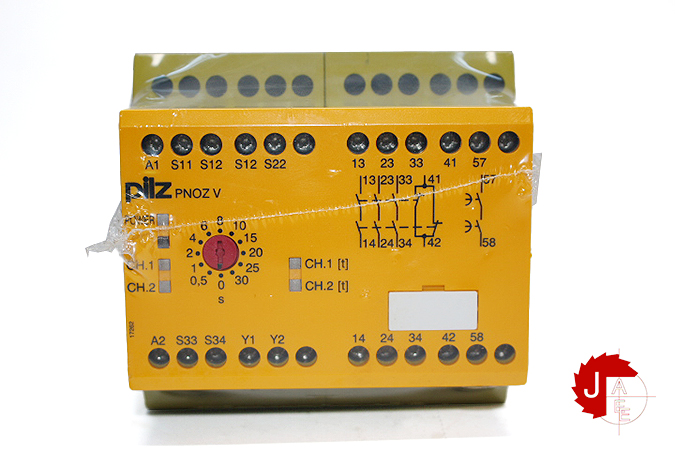

Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 3 N/O, 1 N/C, 1 N/O delayed UB 24 V DC, width: 90 mm, integral screw terminals, Monitoring E-STOP, safety gates with a delay-on de-energisation contact. Release time 12 stages from 0 – 30 s.

Supply voltage (V): 24,0
Supply voltage type: DC
Terminal style: fixed
Terminal type: Screw terminal
Number of instantaneous safety contacts: 3
Number of delayed safety contacts: 1
Safety contact delay type: Delay-on de-energisation
Number of auxiliary contacts: 1
Number of semiconductor outputs: 0
