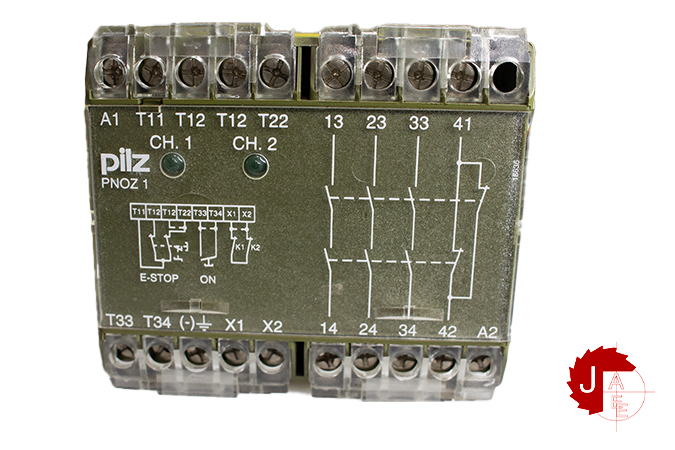

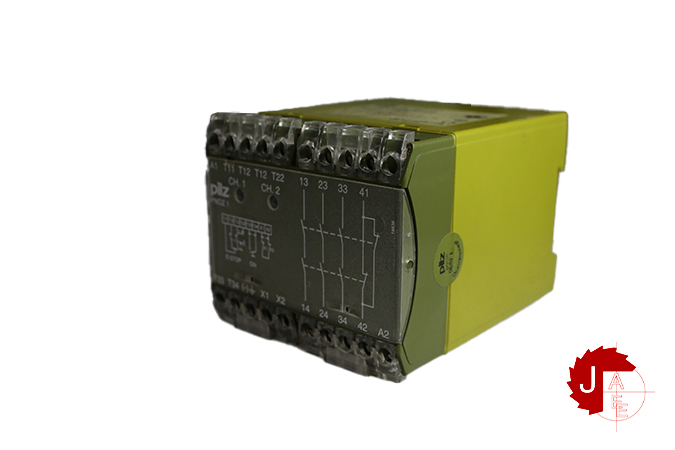

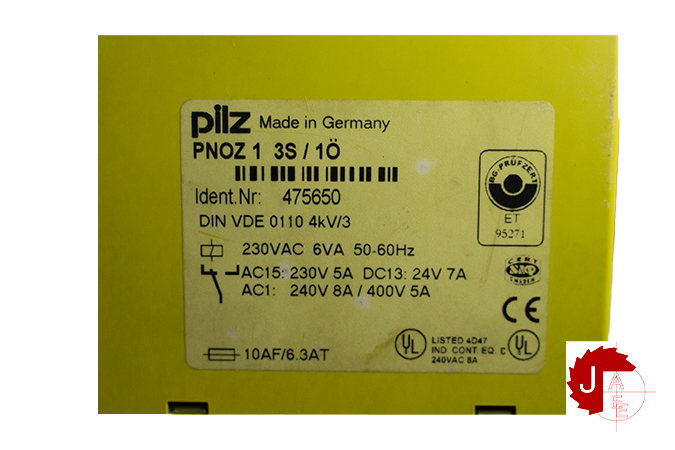

pilz PNOZ1 230VAC 3S1O SAFTY RELA 47560

0900766b80033186

Manufacturer: PILZ
Type: EMERGENCY STOP RELAY
Model: PNOZ1 230VAC 3S1O
Part No: 475650104948

Supply voltage: 230 V AC
Power consumption: 6 VA
Frequency: 50 … 60 Hz
Contact Fuse Protection: 6.3 A quick
Relay outputs:
Conacts: 3 safety contacts (N/O), 1 auxiliary contact (N/C)
AC1: 240 V/8 A/2000 VA, 400 V/ 5 A/2000 VA
AC15: 230 V/ 5 A
DC13: 24 V/ 7 A
Ambient Temperature: -10 … +55 °C
Protection Mounting: IP 54
Protection Housing: IP 40
Protection Terminal Range: IP 20
Dimension: 75 x 90 x 110 mm
