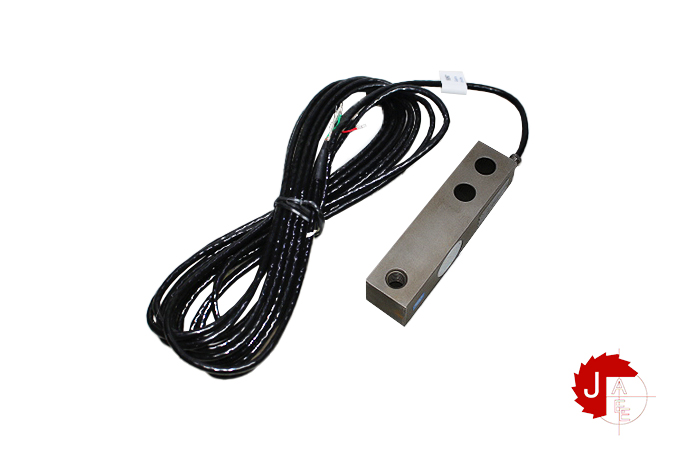

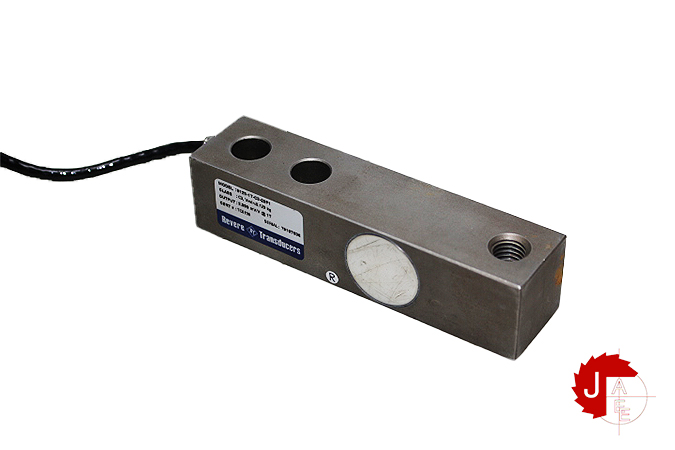

Revere Transducers 9123-1T-C3-20-P1 Single-Ended Beam Load Cell

125.00 $

Availability: 1 in stock

SKU: 0998702 Category:

Only 1 item left.

Manufacturer: Revere Transducers
Type: Single-Ended Beam Load Cell

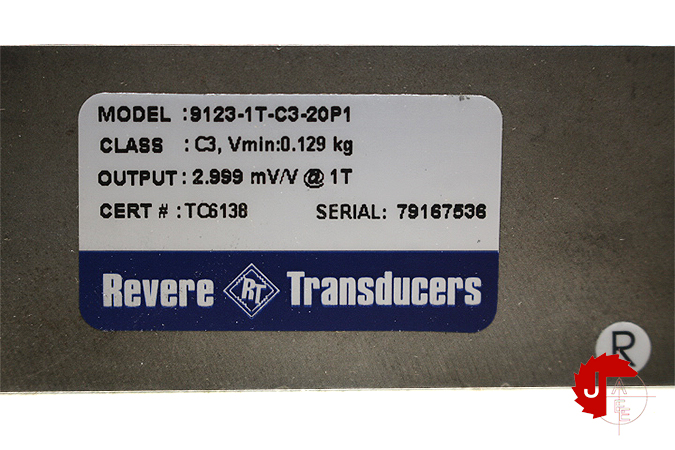

Model: 9123-1T-C3-20-P1

Accuracy Class According to OIML R-60 C3
Max. Number of Verification Intervals (nlc) 3000
Minimum Verification Interval (vmin = Emax/Y) Emax/6000
Minimum Dead Load %Emax 0
Safe Load Limit (=Elim) %Emax 150
Ultimate Overload (=Eult) %Emax 300
Maximum Safe Side Load %Emax 100
Deflection at Emax mm 0.4, 0.8, 1.0, 1.1 / 0.4, 0.8, 1.0, 0.9, 1.1
Excitation Voltage V 5…12
Maximum Excitation Voltage V 15
Rated Output (=Snom) mV/V 3 “ 0.003
Zero Balance %S #” 1.0
Input Resistance Ω 350 “ 3.5
Output Resistance Ω 350 “ 3.5
Insulation Resistance MΩ $ 5000
Compensated Temperature Range EC -10…+40
Operating Temperature Range EC -40…+80
Storage Temperature Range EC -50…+90

Model 9123-1T-C3-20-P1 Single-Ended Beam Load Cell
Condition New
