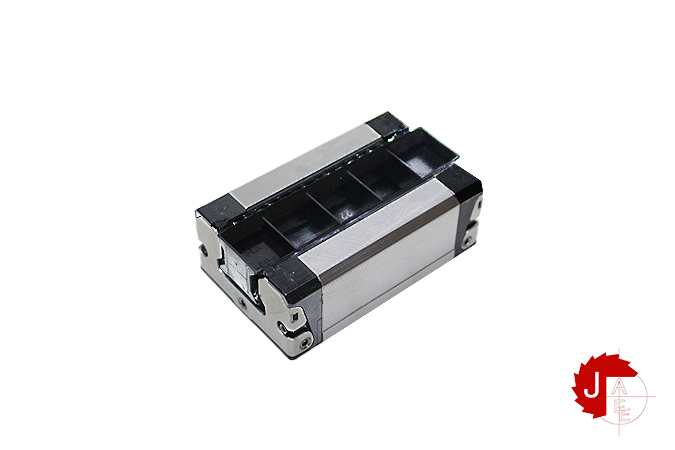

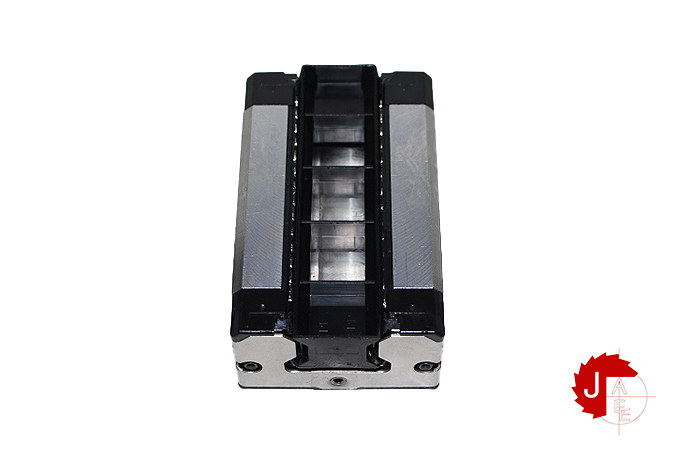

REXROTH R162239420 BALL RUNNER BLOCK

Manufacturer: REXROTH
Type: BALL RUNNER BLOCK
Model: KWD-035-SNS-C0-N-1
Part No: R162239420

Ball runner block, SNS, size 35, steel CS, accuracy standard, preload-free, without ball chain

Nominal size [mm] 35
Format SNS – slimline, normal, standard height
Ball chain Without ball chain (standard)
Material (profiled rail systems) Carbon steel
Preload class C0 – Without preload (clearance)
Accuracy class N – normal
Self-aligning for compensation of misalignments Without self-alignment

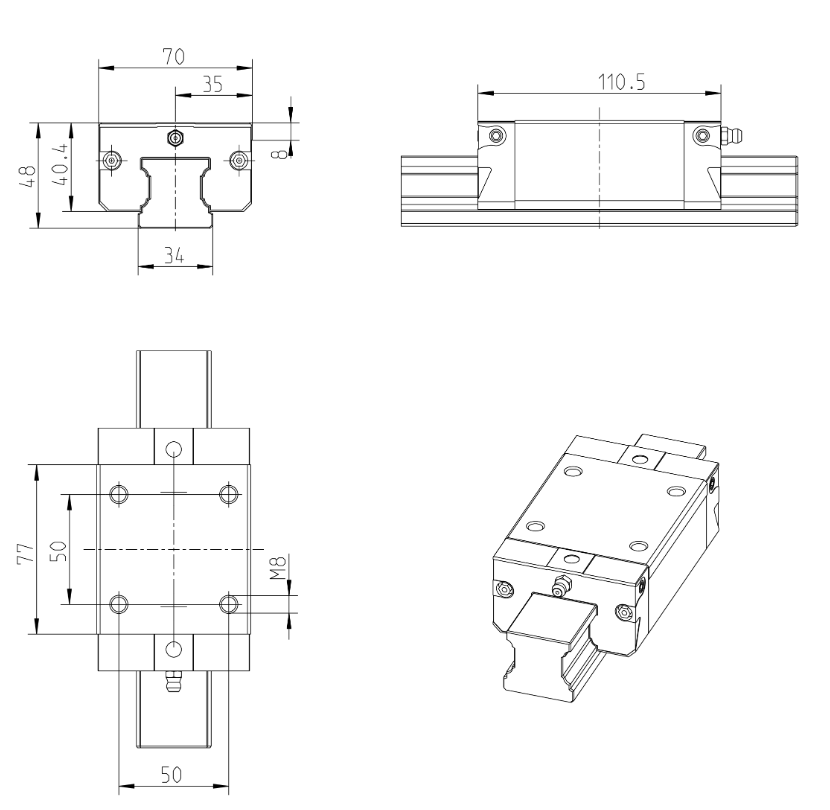

Width of runner block [mm]  70
Length of runner block [mm] 110.5
Height of runner block [mm] 40.4
Height of runner block with guide rail [mm] 48
Lubrication With initial lubrication and preservation
Static longitudinal moment load capacity ML0 [Nm] 1130
Static torsional moment load capacity Mt0 [Nm] 1740
Max. acceleration amax [m/s²] 500
Maximum permissible linear speed vmax [m/s] 5
Dynamic torsional moment load capacity Mt [Nm] 1110
