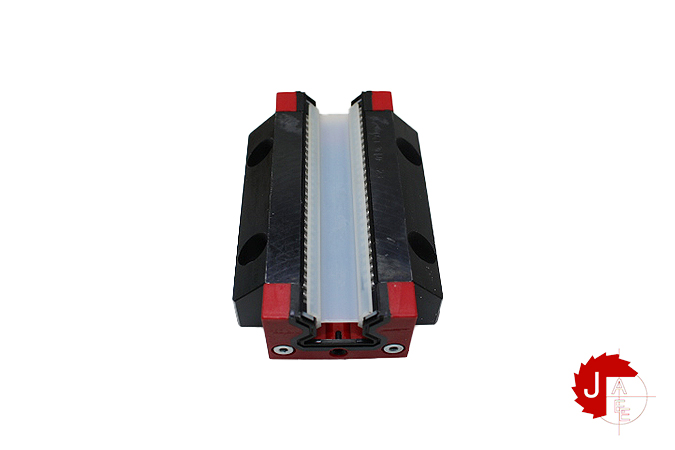

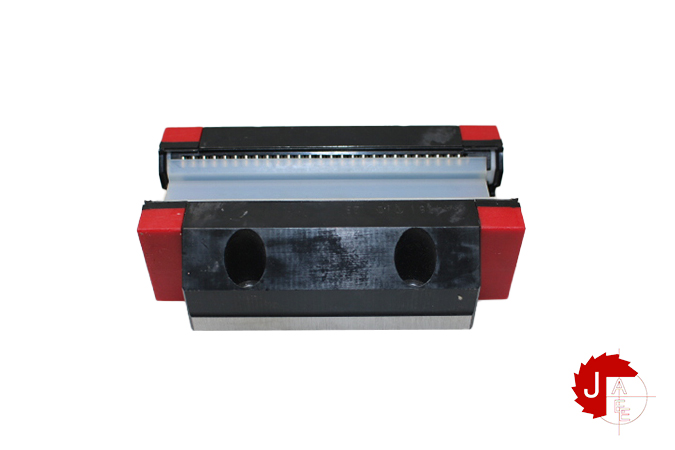

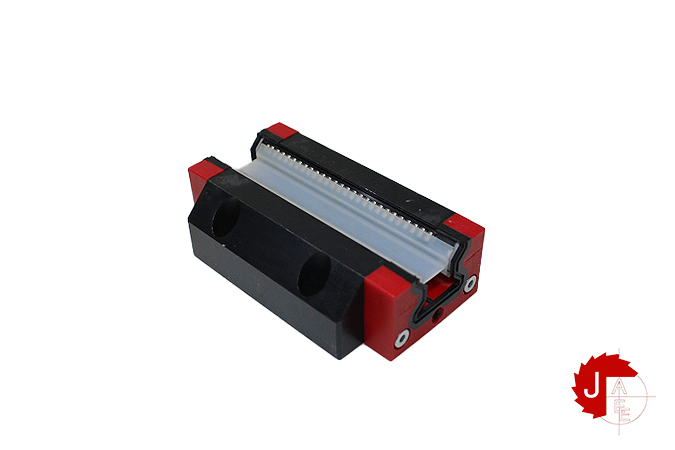

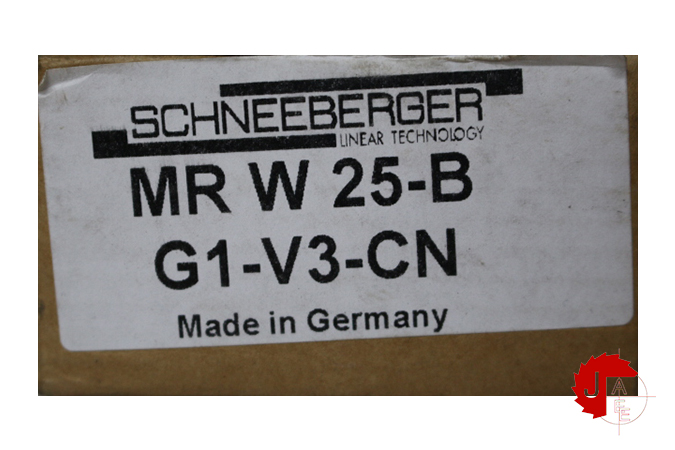

SCHNEEBERGER MRW 25-B-G1-V3-CN Linear Roller Guideways

Manufacturer: SCHNEEBERGER
Type: Linear Roller Guideways
Model: MRW 25-B-G1-V3-CN

– Through-hardened bearing steel
– High rigidity due to rollers with logarithmic profile as rolling elements
– Large dynamic and static load-bearing capacity
– Very smooth running
– Variety of lubrication options
– Maximum speed 3 m/s
– Maximum acceleration 50 m/s²
– Can be used at a working temperature of -40°C to + 80°C
– Construction condition 4S

Type (MONORAIL Carriage) MR
Carriage build form B
Buildsize 25
Accuracy class G1
Preload class V3
Coating CN

A System height in mm 40
B Carriage width in mm 48
B2 Distance between locating faces 12.5
C1 Position of center front lube hole 9.5
C3 Position of lateral lube hole 7.5
C4 Position of lateral lube hole 21.7
C7 Position of lateral lube hole 20.7
J Carriage height 33.5
L Carriage length 110
L1 Exterior fixing hole spacing 50
L6 Steel body length 79.4
N Lateral fixing hole spacing 35
O Reference face height 7.5
