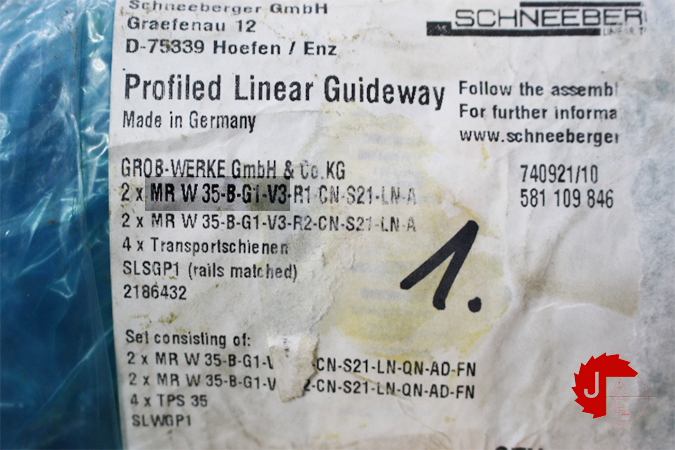

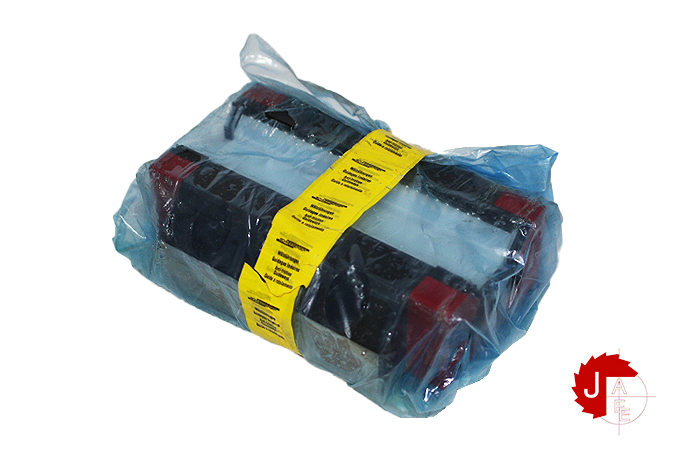

SCHNEEBERGER MRW 35-B-G1-V3 Linear Roller Guideways

Manufacturer: SCHNEEBERGER
Type: Linear Roller Guideways
Model: MRW 35-B-G1-V3

– Through-hardened bearing steel
– High rigidity due to rollers with logarithmic profile as rolling elements
– Large dynamic and static load-bearing capacity
– Very smooth running
– Variety of lubrication options
– Maximum speed 3 m/s
– Maximum acceleration 50 m/s²
– Can be used at a working temperature of -40°C to + 80°C
– Construction condition 4S

Type (MONORAIL Carriage) MR
Carriage build form B
Build size 35
Accuracy class G1
Preload class V3
Coating CN

A System height in mm 48
B Carriage width in mm 100
B2 Distance between locating faces 33
C1 Position of center front lube hole 7
C3 Position of lateral lube hole 7
C4 Position of lateral lube hole 30.5
C7 Position of lateral lube hole 27.5
J Carriage height 40
L Carriage length 143
L1 Exterior fixing hole spacing 62
L2 Interior fixing hole spacing 52
L6 Steel body length 103
N Lateral fixing hole spacing 82
O Reference face height 8
