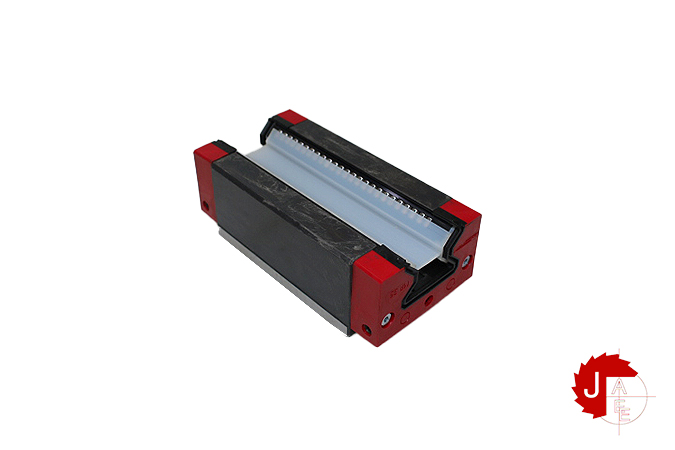

SCHNEEBERGER MRW 35-D-G1-V3-CN Linear Roller Guideways

Manufacturer: SCHNEEBERGER
Type: Linear Roller Guideways
Model: MRW 35-D-G1-V3-CN

– Through-hardened bearing steel
– High rigidity due to rollers with logarithmic profile as rolling elements
– Large dynamic and static load-bearing capacity
– Very smooth running
– Variety of lubrication options
– Maximum speed 3 m/s
– Maximum acceleration 50 m/s²
– Can be used at a working temperature of -40°C to + 80°C
– Construction condition 4S

Type (MONORAIL Carriage) MR
Carriage build form D
Build size 35
Accuracy class G1
Preload class V3
Coating CN

A System height in mm 55
B Carriage width in mm 70
B2 Distance between locating faces 18
C1 Position of center front lube hole 14
C3 Position of lateral lube hole 14
C4 Position of lateral lube hole 25.5
C7 Position of lateral lube hole 22.5
J Carriage height 47
L Carriage length 143
L1 Exterior fixing hole spacing 72
L6 Steel body length 103
N Lateral fixing hole spacing 50
O Reference face height 8
