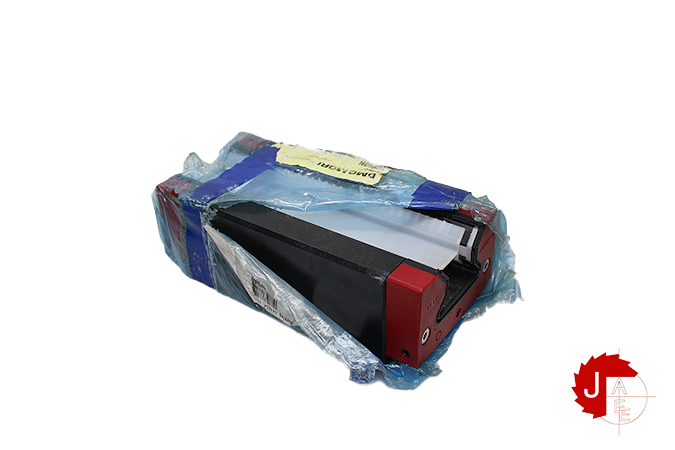

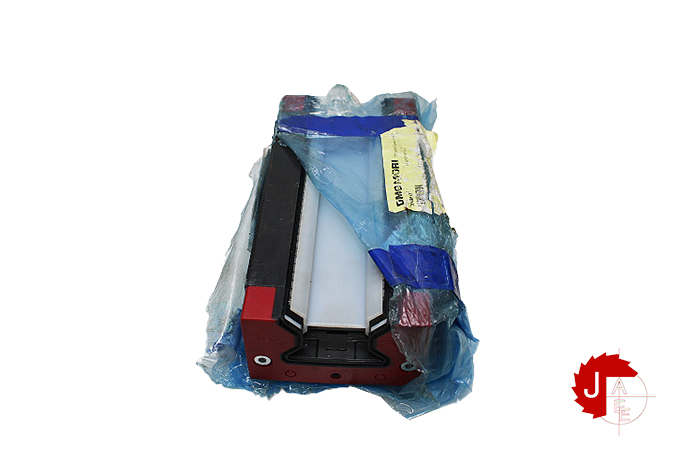

SCHNEEBERGER MRW 55-D-G1-V3 Linear Roller Guideways

Manufacturer: SCHNEEBERGER
Type: Linear Roller Guideways
Model: MRW 55-D-G1-V3

– Through-hardened bearing steel
– High rigidity due to rollers with logarithmic profile as rolling elements
– Large dynamic and static load-bearing capacity
– Very smooth running
– Variety of lubrication options
– Maximum speed 3 m/s
– Maximum acceleration 50 m/s²
– Can be used at a working temperature of -40°C to + 80°C
– Construction condition 4S

Type (MONORAIL Carriage) MR
Carriage build form D
Build size 55
Accuracy class G1
Preload class V3
Coating CN

A System height in mm 80
B Carriage width in mm 100
B2 Distance between locating faces 23.5
C1 Position of center front lube hole 19
C3 Position of lateral lube hole 19
C4 Position of lateral lube hole 46.75
C7 Position of lateral lube hole 42.5
J Carriage height 67
L Carriage length 214
L1 Exterior fixing hole spacing 95
L6 Steel body length 162
N Lateral fixing hole spacing 75
O Reference face height 12
