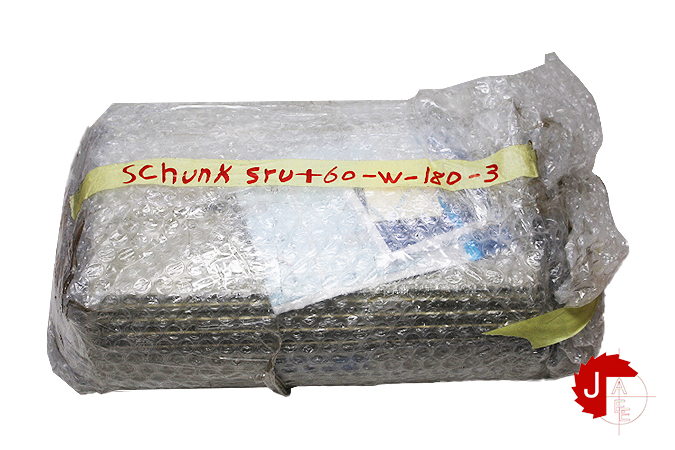

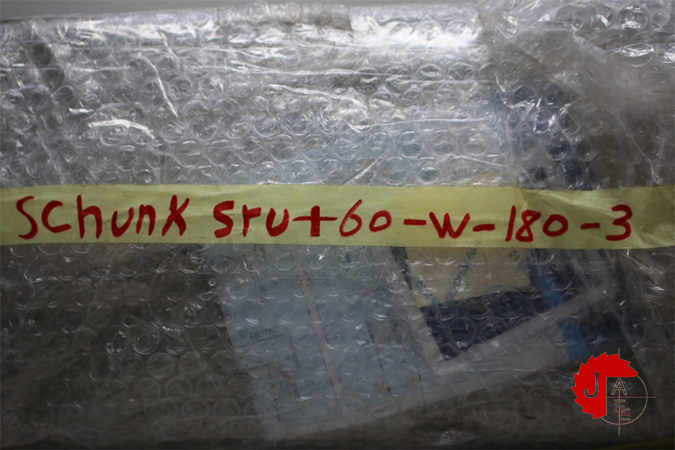

SCHUNK SRU+60-W-180-3 Universal swivel unit 362820

Manufacturer: SCHUNK
Type: Universal swivel unit
Model: SRU+60-W-180-3
Art No: 362820

End position damping hydr. damper
Angle of rotation [°] 180
End position adjustability [°] 3
Torque [Nm] 70
Number of intermediate positions 1 x M (pneumatic)
Adjustability of middle position [°] 3
IP protection class 67
Weight [kg] 18.95
Fluid consumption (2x nom. angle) [cm³] 1120
Nominal operating pressure [bar] 6
Min. operating pressure [bar] 4
Max. operating pressure [bar] 8
Diameter of connecting hose 8 x 6 x 1
Min. ambient temperature [°C] 5
Max. ambient temperature [°C] 60
Repeat accuracy [°] 0.05
Moment My max. [Nm] 340
Max. axial force Fz max. [N] 9000
Version with fluid feed-through yes
Version with electrical feed-throughs yes
Version with M12 connector yes
